  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

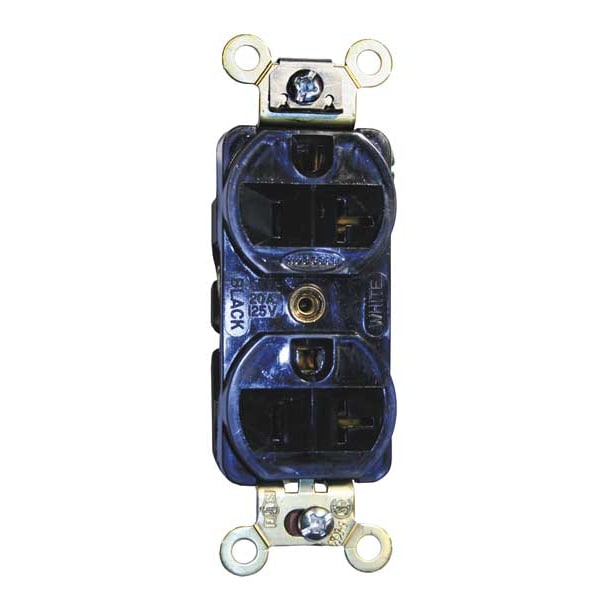

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5352BK - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5352BK

  • Zoro # G2317795

product price: $23.56
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5352BK
Zoro #
G2317795
UPC #
783585435008
Country of Origin
United States

Dimensions

Length
3.28 in
Width
1.33 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.33 in x 1.05 in
Height
1.05 in
Minimum Wire Size
12 AWG
Overall Depth
1.1 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
Flange Type
Non-Flanged
Number of Gangs
1
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
No
Color
Black
Application Environment
Industrial
Corrosion Resistant
No
Surge Suppression
No
Weather Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Tamper Resistant
No
Outlet Type
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
Wiring Method
Back, Side
NEMA Configuration
5-20
Material
Nylon/Reinforced PET
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Voltage
125VAC
Style
Finder Groove Face
Number Of Wires
3-Wire
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Brand
Hubbell Wiring Device-Kellems
UPC
783585000000
Maximum Horsepower
1
Wattage
2500 W
Dielectric Strength
Withstands 2,000V minimum
Carton Quantity
10
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Type
Standard Duplex
Connectivity
Back and Side Wired Screw Terminals
Amperage
20 A
Application
Extra Heavy Duty Compact
Nema Rating
5-20R
Series
Heavy Duty
Weight
0.2 lb
Mounting Hardware Material
Screw Mounting
Connection Orientation
Straight
NEMA Enclosure Rating
1
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Maximum Operating Temperature
167 Degrees F
Includes Mounting Hardware
Yes
AFCI
No
Housing Material
Nylon
Cover Type
No Cover
Contact Material
Brass
Surge Protection
No
Polarized
Yes
Grade
Federal Specification
Market
Industrial
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Shrouded
No
Device Color
Black
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Other Available Colors
Brown, Almond, Black, Blue, Gray, Ivory, Red, White
Receptacle Grade
Compact Spec Grade
Face Shape
Traditional
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Receptacle Style
Duplex
Mounting Screw Material
Steel-Zinc Plated
Top Material
Nylon
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Current Interrupting
Certified for current interrupting at full rated current
Face Style
Finder Groove
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Horsepower
1
Poles and Wires
2 Pole, 3-Wire Grounding
Power Contacts Material
.037" (.9) Phosphor Bronze
Flammability
Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA., UL 94 V-0
Mounting Strap Material
.050" (1.3) Brass
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Dielectric Voltage
Withstands 2,000V minimum
Standard
NEMA
Auto Ground Clip Material
Stainless Steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Base Material
Reinforced PET
Rating
20A, 125V
Horsepower - Maximum
1
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
