  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

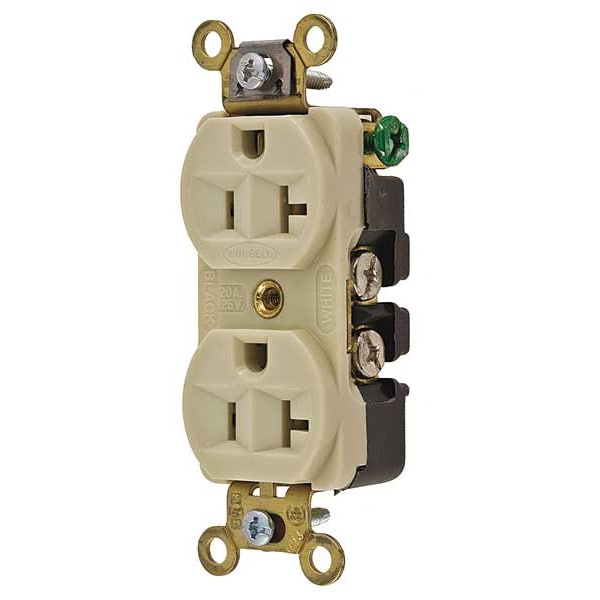

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5352I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5352I

  • Zoro # G1268653

product price: $23.56
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5352I
Zoro #
G1268653
UPC #
783585435046
Country of Origin
United States

Dimensions

Wire Size
#12 AWG to #10 AWG
Length
3.28 in
Height
1.05 in
Display Size
Standard Sized Product
Width
1.33 in
Dimensions
3.28 in x 1.33 in x 1.05 in
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Overall Depth
1.1 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Standard Duplex
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Industrial
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
HP
1 hp
Corrosion Resistant
No
Material
Nylon/Reinforced PET
Voltage
125VAC
Sub-Category
Duplex Receptacles
Outlet Type
Duplex
Tamper Resistant
No
NEMA Configuration
5-20
Color
Ivory
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type
Flush
Power Indicator
No
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Dielectric Strength
Withstands 2,000V minimum
Mounting Hardware Material
Screw Mounting
Series
Heavy Duty
Amperage
20 A
Brand
Hubbell Wiring Device-Kellems
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Style
Finder Groove Face
Number Of Wires
3-Wire
Carton Quantity
10
Weight
0.2 lb
Wattage
2500 W
Connectivity
Back and Side Wired Screw Terminals
Type
Standard Duplex
UPC
783585000000
Nema Rating
5-20R
Application
Extra Heavy Duty Compact
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Maximum Horsepower
1
Market
Industrial
Surge Protection
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Contact Material
Brass
Horsepower Rating
1 hp
GFCI
No
NEMA Enclosure Rating
1
For Location
Indoor
UL 94 Flammability Rating
V-0
Shrouded
No
Cover Type
No Cover
Housing Material
Nylon
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
Grade
Federal Specification
Connection Orientation
Straight
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Auto Ground Clip Material
Stainless Steel
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Device Color
Ivory
Horsepower
1
Base Material
Reinforced PET
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Shape
Traditional
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Power Contacts Material
.037" (.9) Phosphor Bronze
Receptacle Grade
Compact Spec Grade
Dielectric Voltage
Withstands 2,000V minimum
Rating
20A, 125V
Top Material
Nylon
Flammability
UL 94 V-0, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Face Style
Finder Groove
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Standard
NEMA
Mounting Strap Material
.050" (1.3) Brass
Mounting Screw Material
Steel-Zinc Plated
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Poles and Wires
2 Pole, 3-Wire Grounding
Current Interrupting
Certified for current interrupting at full rated current
Other Available Colors
Brown, Almond, Black, Blue, Gray, Ivory, Red, White
Receptacle Style
Duplex
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
