  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

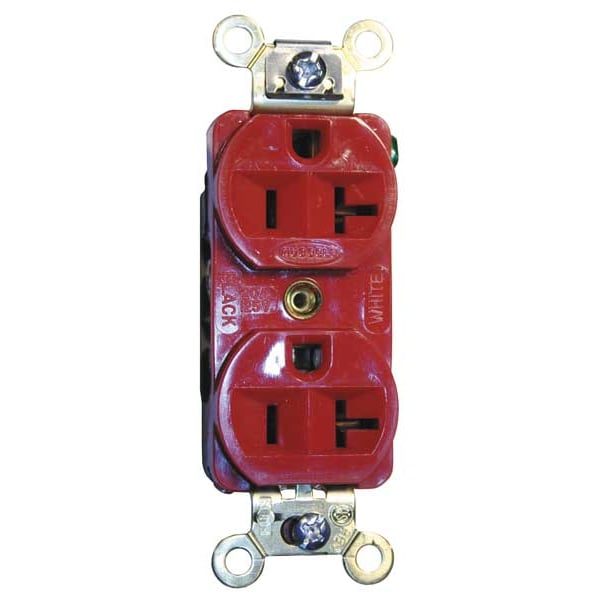

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5352R - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5352R

  • Zoro # G3493271

product price: $24.75
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5352R
Zoro #
G3493271
UPC #
783585435060
Country of Origin
United States

Dimensions

Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.33 in x 1.05 in
Width
1.33 in
Height
1.05 in
Length
3.28 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
Nylon/Reinforced PET
Surge Suppression
No
Tamper Resistant
No
Sub-Category
Duplex Receptacles
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Outlet Type
Duplex
Application Environment
Industrial
Power Indicator
No
NEMA Configuration
5-20
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Color
Red
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Corrosion Resistant
No
Number of Gangs
1
Voltage
125VAC
Connectivity
Back and Side Wired Screw Terminals
Carton Quantity
10
Dielectric Strength
Withstands 2,000V minimum
Application
Extra Heavy Duty Compact
Style
Finder Groove Face
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Wattage
2500 W
Maximum Horsepower
1
Brand
Hubbell Wiring Device-Kellems
Weight
0.2 lb
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Type
Standard Duplex
Series
Heavy Duty
Mounting Hardware Material
Screw Mounting
Number Of Wires
3-Wire
UPC
783585000000
Amperage
20 A
Nema Rating
5-20R
NEMA Enclosure Rating
1
Grade
Federal Specification
UL 94 Flammability Rating
V-0
AFCI
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Market
Industrial
For Location
Indoor
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Shrouded
No
Polarized
Yes
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Housing Material
Nylon
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Surge Protection
No
Cover Type
No Cover
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Power Contacts Material
.037" (.9) Phosphor Bronze
Mounting Strap Material
.050" (1.3) Brass
Auto Ground Clip Material
Stainless Steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Mounting Screw Material
Steel-Zinc Plated
Poles and Wires
2 Pole, 3-Wire Grounding
Horsepower
1
Standard
NEMA
Other Available Colors
Brown, Almond, Black, Blue, Gray, Ivory, Red, White
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Current Interrupting
Certified for current interrupting at full rated current
Face Style
Finder Groove
Dielectric Voltage
Withstands 2,000V minimum
Base Material
Reinforced PET
Receptacle Style
Duplex
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Rating
20A, 125V
Top Material
Nylon
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Flammability
UL 94 V-0, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Receptacle Grade
Compact Spec Grade
Device Color
Red
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Shape
Traditional
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
1
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
