  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

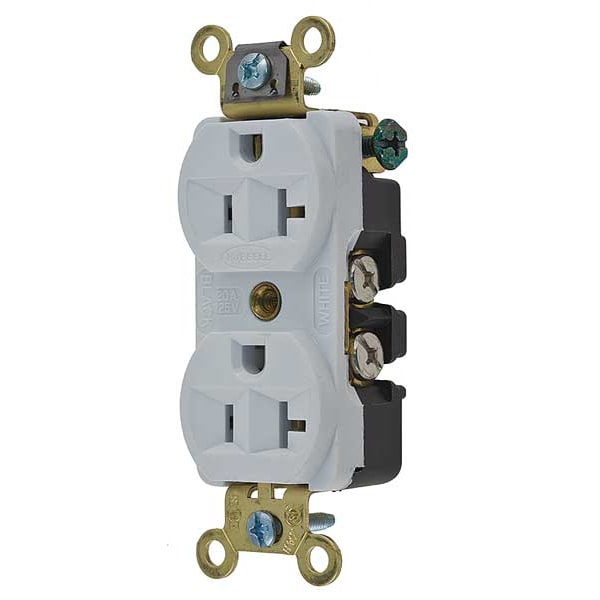

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5352W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5352W

  • Zoro # G2468611

product price: $23.56
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5352W
Zoro #
G2468611
UPC #
783585435084
Country of Origin
United States

Dimensions

Height
1.05 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.33 in x 1.05 in
Width
1.33 in
Length
3.28 in
Face Plate Height
2.7 in
Minimum Wire Size
12 AWG
Overall Depth
1.1 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
Industrial
Number of Gangs
1
Weather Resistant
No
Surge Suppression
No
Sub-Category
Duplex Receptacles
Material
Nylon/Reinforced PET
Wiring Method - Plugs and Receptacles
Back and Side
Color
White
Outlet Type
Duplex
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Standard Duplex
HP
1 hp
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
NEMA Configuration
5-20
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Tamper Resistant
No
Weight
0.2 lb
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
UPC
783585000000
Nema Rating
5-20R
Amperage
20 A
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Connectivity
Back and Side Wired Screw Terminals
Application
Extra Heavy Duty Compact
Number Of Wires
3-Wire
Style
Finder Groove Face
Carton Quantity
10
Mounting Hardware Material
Screw Mounting
Series
Heavy Duty
Brand
Hubbell Wiring Device-Kellems
Type
Standard Duplex
Wattage
2500 W
Maximum Horsepower
1
Dielectric Strength
Withstands 2,000V minimum
Cover Type
No Cover
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Connection Orientation
Straight
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
AFCI
No
Shrouded
No
NEMA Enclosure Rating
1
Market
Industrial
Housing Material
Nylon
Grade
Federal Specification
GFCI
No
Includes Mounting Hardware
Yes
Contact Material
Brass
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Mounting Strap Material
.050" (1.3) Brass
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Standard
NEMA
Flammability
Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA., UL 94 V-0
Other Available Colors
Brown, Almond, Black, Blue, Gray, Ivory, Red, White
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
White
Receptacle Grade
Compact Spec Grade
Power Contacts Material
.037" (.9) Phosphor Bronze
Base Material
Reinforced PET
Dielectric Voltage
Withstands 2,000V minimum
Face Shape
Traditional
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Face Style
Finder Groove
Horsepower
1
Receptacle Style
Duplex
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Auto Ground Clip Material
Stainless Steel
Rating
20A, 125V
Current Interrupting
Certified for current interrupting at full rated current
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Top Material
Nylon
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Mounting Screw Material
Steel-Zinc Plated
Poles and Wires
2 Pole, 3-Wire Grounding
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
1
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
