  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

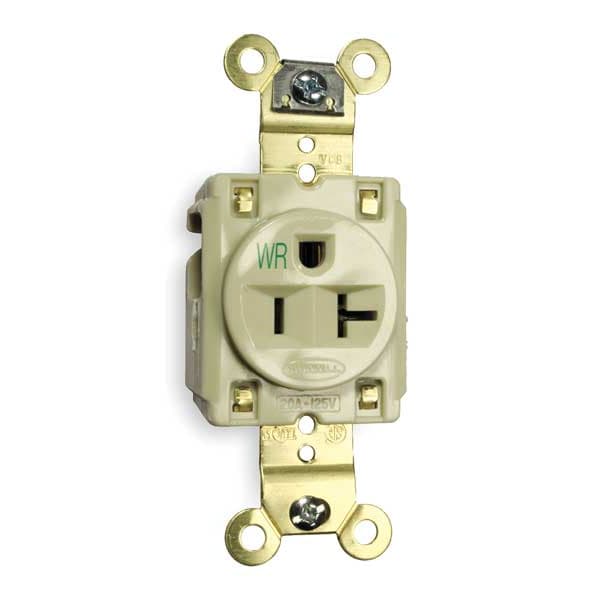

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5361IWR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5361IWR

  • Zoro # G0318902

product price:  $29.16
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5361IWR
Zoro #
G0318902
UPC #
783585320649
Country of Origin
United States

Dimensions

Width
1.63 in
Height
1.19 in
Overall Depth
1.2 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Face Plate Height
1.9 in
Face Plate Width
1.6 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG
Length
3.28 in
Dimensions
3.28 in x 1.63 in x 1.19 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-601
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Sub-Category
Single Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Application Environment
Harsh and Heavy Use Industrial
Weather Resistant - Plugs and Receptacles
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type
Flush
Outlet Type
Single
Voltage
125VAC
Number of Gangs
1
Corrosion Resistant
No
HP
1 hp
Material
Nylon/Reinforced PET
Tamper Resistant
No
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-20
Weather Resistant
Yes
Outlet Type - Plugs and Receptacles
Single
Type
Single
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Housing Material
Nylon (Face)
UL 94 Flammability Rating
V-0, V-2
Market
Industrial
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
1
GFCI
No
Contact Material
Nickel-Plated Brass
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Shrouded
No
Grade
Federal Specification
Surge Protection
No
Cover Type
No Cover
Polarized
Yes
Top Material
Nylon
Current Interrupting
Certified for current interrupting at full rated current
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Flammability
UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Mounting Strap Material
.050" (1.3) Brass
Rating
15A, 125V
Other Available Colors
Brown, Ivory, Gray
Poles and Wires
2 Pole, 3-Wire Grounding
Standard
NEMA
Auto Ground Clip Material
Stainless Steel
Mounting Screw Material
Steel-Zinc Plated
Device Color
Ivory
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Horsepower
1
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Shape
Traditional
Base Material
Reinforced PET
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Power Contacts Material
.032" (.81) Brass
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Dielectric Voltage
Withstands 2,000V minimum
Receptacle Style
Single
Receptacle Grade
Extra Heavy Duty, Weather Resistant
Face Style
Finder Groove
Style
Finder Groove Face
Series
Extra Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dielectric Strength
Withstands 2,000V minimum
Wattage
2500 W
Environmental Conditions
Weather Resistant
Nema Rating
5-20R
Application
Extra Heavy Duty Specification Grade
Material - Mounting Hardware
Screw Mounting
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
1
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-601 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

The HUBBELL HBL5262 is a single, flush mount receptacle rated for 20A and 125V AC, and is intended for industrial applications. It features a NEMA 5-20R configuration and is constructed with a nylon face and reinforced PET base. The device supports both back and side wired screw terminals for flexible installation options and includes grounding capabilities.


Key Features of the HUBBELL HBL5262 Receptacle:

  • Amperage/Voltage: Rated for 20A, 125V AC

  • NEMA Configuration: 5-20R, single outlet

  • Mounting Type: Flush mount with included mounting hardware

  • Wiring Method: Back or side wired screw terminals; accommodates #12–#10 AWG copper wire

  • Material Construction: Nylon face, reinforced PET base; nickel-plated brass contacts

  • Weather Resistant: Rated for use in specified environmental conditions as per manufacturer specifications

  • Grounding: Includes stainless steel auto ground clip and grounding clip

  • Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-601, NEMA WD-6 compliant

  • Operating Temperature Range: -40°C to +75°C continuous operation without impact

  • Dielectric Strength & Flammability Rating: Withstands minimum 2,000V; UL94 V-0/V-2 flammability rating on components
