  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

This item is Discontinued.

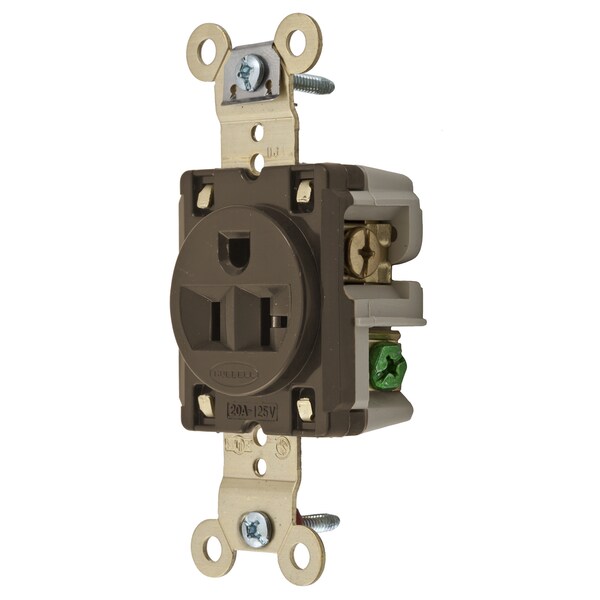

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5361RT

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded (Discontinued)

  • Mfr # HBL5361RT
  • Zoro # G300622633
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5361RT
Zoro #
G300622633
UPC #
783585318523
Country of Origin
United States

Dimensions

Height
1.19 in
Length
3.28 in
Width
1.63 in
Wire Size
#12 AWG to #10 AWG
Dimensions
3.28 in x 1.63 in x 1.19 in
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Wire Leads
Wiring Method
Ring Terminal
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Series
Extra Heavy Duty
Material
Nylon
Application
Extra Heavy Duty Specification Grade
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Auto Ground Clip Material
Stainless Steel
Standard
NEMA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only.
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Terminal Identification
Terminals identified in accordance with UL498 (Brass, White, Green).
Horsepower
1
Power Contacts Material
.032" (.81) Brass
Receptacle Grade
Extra Heavy Duty Spec Grade
Face Style
Finder Groove
Flammability
UL 94 V2 or better
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Receptacle Style
Single
Product Type
flush-receptacles
Poles and Wires
2 Pole, 3-Wire Grounding
Rating
20A, 125V
Dielectric Voltage
Withstands 2,000V minimum.
Operating Temperatures
Maximum continuous 75°C, minimum -40°C (w/o impact).
Mounting Screw Material
Steel-Zinc Plated
Mounting Strap Material
.050" (1.3) Brass
Current Interrupting
Certified for current interrupting at full rated current.
Base Material
Reinforced PET
Top Material
Nylon
Face Shape
Traditional
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Material - Mounting Hardware
Screw Mounting
Number Of Wires
3-Wire
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Nema Rating
5-20R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1
Wattage
2500 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Ring Terminal

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Single, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R,Brown, Single Pack, Ring Terminal Mod
