  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

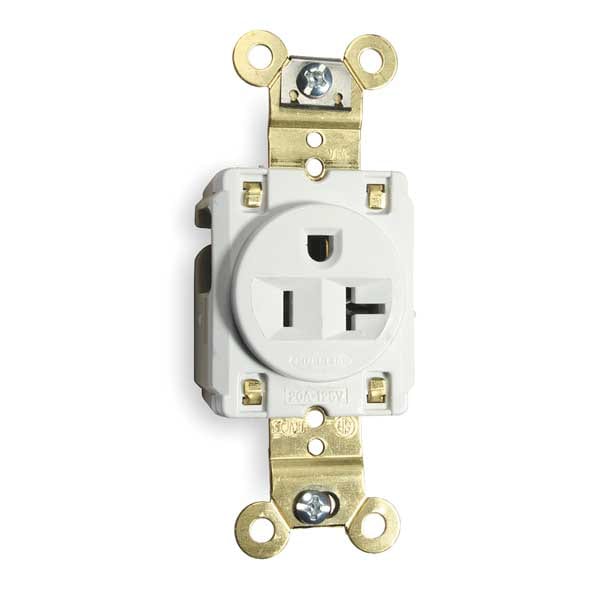

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5361W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5361W

  • Zoro # G2444662

product price: $27.81
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5361W
Zoro #
G2444662
UPC #
783585012858
Country of Origin
United States

Dimensions

Width
1.63 in
Height
1.19 in
Face Plate Width
1.6 in
Face Plate Height
1.9 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Maximum Wire Size
10 AWG
Overall Depth
1.2 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.63 in x 1.19 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Weather Resistant
No
Mounting Type
Flush
Outlet Type
Single
Power Indicator
No
Corrosion Resistant
No
Sub-Category
Single Receptacles
Application Environment
Harsh and Heavy Use Industrial
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Single
Mounting Type - Plugs and Receptacles
Flush
HP
1 hp
Material
Nylon/Reinforced PET
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Tamper Resistant
No
Type
Single
AFCI
No
UL 94 Flammability Rating
V-0, V-2
Market
Industrial
Connection Orientation
Straight
Grade
Federal Specification
Polarized
Yes
Housing Material
Nylon (Face)
Shrouded
No
GFCI
No
NEMA Enclosure Rating
1
Horsepower Rating
1 hp
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Surge Protection
No
Contact Material
Nickel-Plated Brass
Maximum Operating Temperature
167 Degrees F
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Includes Mounting Hardware
Yes
Face Style
Finder Groove
Receptacle Style
Single
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Standard
NEMA
Mounting Screw Material
Steel-Zinc Plated
Device Color
White
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Top Material
Nylon
Receptacle Grade
Extra Heavy Duty Spec Grade
Face Shape
Traditional
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Dielectric Voltage
Withstands 2,000V minimum
Base Material
Reinforced PET
Flammability
UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Rating
20A, 125V
Other Available Colors
Gray, Ivory, White, Brown, Black
Horsepower
1
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Power Contacts Material
.032" (.81) Brass
Auto Ground Clip Material
Stainless Steel
Current Interrupting
Certified for current interrupting at full rated current
Mounting Strap Material
.050" (1.3) Brass
Material - Mounting Hardware
Screw Mounting
Series
Extra Heavy Duty
Dielectric Strength
Withstands 2,000V minimum
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Wattage
2500 W
Style
Finder Groove Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Extra Heavy Duty Specification Grade
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Horsepower - Maximum
1
Nema Rating
5-20R
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

The HUBBELL HBL5262 is a single, flush mount receptacle rated for 20A and 125V AC, rated as specification grade. This NEMA 5-20R outlet features a traditional face style with finder groove design and is intended for use in industrial environments. It accommodates back and side wiring methods with screw terminals, accommodating #12 to #10 AWG copper conductors.


Key Features of the HUBBELL HBL5262 Receptacle:

  • Amperage/Voltage: Rated for 20A, 125V AC

  • NEMA Configuration: 5-20R, single outlet

  • Mounting Type: Flush mount with included mounting hardware

  • Wiring Method: Back and side wired screw terminals; accommodates #12–#10 AWG copper wire

  • Material Construction: Nylon face with reinforced PET base; nickel-plated brass contacts

  • Grounding: Integral one-piece brass ground strap; includes grounding clip

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Dielectric Strength: Withstands minimum of 2,000V

  • Circuit Interrupting Capability: Rated for operation at specified current

  • Certifications & Standards: UL Listed (UL498), CSA C22.2 No.42 certified, Federal Specification W-C-596 compliant, NEMA WD-6 compliant
