  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

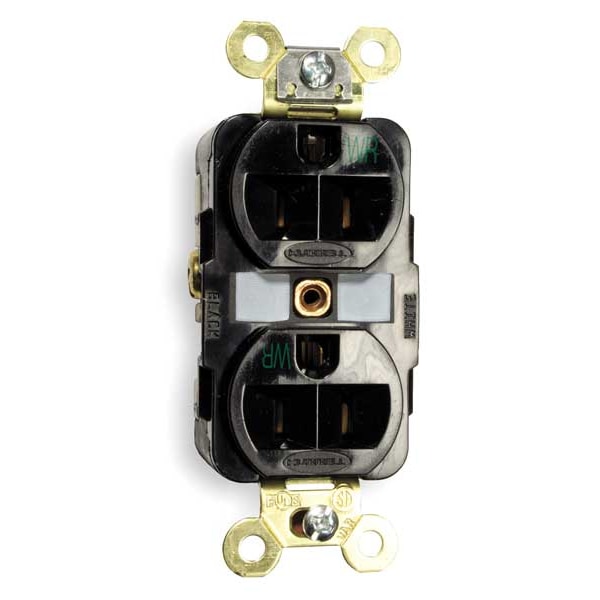

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5362BKWR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5362BKWR

  • Zoro # G3048692

product price:  $35.86
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5362BKWR
Zoro #
G3048692
UPC #
783585320601
Country of Origin
United States

Dimensions

Dimensions
3.28 in x 1.65 in x 1.19 in
Height
1.19 in
Length
3.28 in
Wire Size
#12 AWG to #10 AWG
Width
1.65 in
Display Size
Standard Sized Product
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Overall Depth
1.2 in
Minimum Wire Size
12 AWG
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Weather Resistant
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
No
Color
Black
NEMA Configuration
5-20
Corrosion Resistant
No
Outlet Type
Duplex
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
Material
Nylon/Reinforced PET
Application Environment
Harsh and Heavy Use Industrial
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Mounting Type
Flush
HP
1 hp
Weather Resistant - Plugs and Receptacles
Yes
Maximum Horsepower
1
Type
Weather Resistant
Brand
Hubbell Wiring Device-Kellems
Nema Rating
5-20R
Application
Extra Heavy Duty Specification Grade
Dielectric Strength
Withstands 2,000V minimum
Carton Quantity
10
Weight
0.25 lb
Style
Finder Groove Face
Series
Extra Heavy Duty
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Number Of Wires
3-Wire
Environmental Rating
Weather Resistant
Wattage
2500 W
Amperage
20 A
Connectivity
Back and Side Wired Screw Terminals
UPC
783585000000
Mounting Hardware Material
Screw Mounting
Housing Material
Nylon, Reinforced PET
Key Resistance Properties
Weather Resistant
Cover Type
No Cover
Shrouded
No
AFCI
No
GFCI
No
UL 94 Flammability Rating
V-0, V-2
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
Polarized
Yes
Number of Poles & Wires
2 Pole / 3 Wire
NEMA Enclosure Rating
1
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Additional Electrical Protection
Standard Protection
Market
Industrial
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Wire Connection Types
Screw Terminals
Connection Orientation
Straight
Grade
Federal Specification
Includes Mounting Hardware
Yes
Contact Material
Nickel-Plated Brass
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Face Shape
Traditional
Mounting Screw Material
Steel-Zinc Plated
Standard
NEMA
Current Interrupting
Certified for current interrupting at full rated current
Poles and Wires
2 Pole, 3-Wire Grounding
Auto Ground Clip Material
Stainless Steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Horsepower
1
Receptacle Style
Duplex
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Top Material
Nylon
Rating
15A, 125V
Base Material
Reinforced PET
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Power Contacts Material
.037" (.9) Brass
Device Color
Black
Dielectric Voltage
Withstands 2,000V minimum
Ground Screw Material
#10-32 Silicon Bronze (Green)
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Mounting Strap Material
.050" (1.3) Brass
Receptacle Grade
Extra Heavy Duty, Weather Resistant
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better
Face Style
Finder Groove

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
• Weather-resistance complies with national electrical code requirements
• Finder Groove Face
• One-piece brass integral ground strap
• Deep body design with circuit ID face
