  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

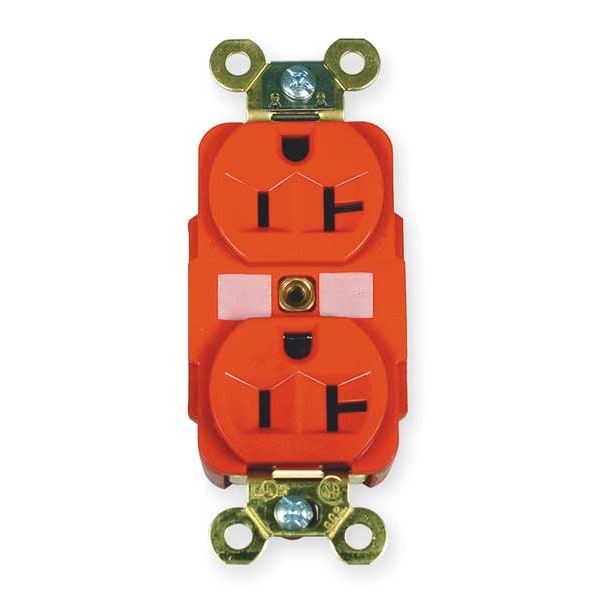

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5362R - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5362R

  • Zoro # G1729542

product price: $31.52
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5362R
Zoro #
G1729542
UPC #
783585435305
Country of Origin
United States

Dimensions

Height
1.19 in
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.65 in x 1.19 in
Display Size
Standard Sized Product
Length
3.28 in
Width
1.65 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Face Plate Height
2.7 in
Face Plate Width
1.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Power Indicator
No
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type
Flush
Weather Resistant
No
Tamper Resistant
No
NEMA Configuration
5-20
HP
1 hp
Outlet Type - Plugs and Receptacles
Standard Duplex
Outlet Type
Duplex
Application Environment
Harsh and Heavy Use Industrial
Material
Nylon/Reinforced PET
Number of Gangs
1
Surge Suppression
No
Corrosion Resistant
No
Color
Red
Number Of Wires
3-Wire
Application
Extra Heavy Duty Specification Grade
Dielectric Strength
Withstands 2,000V minimum
Style
Finder Groove Face
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Wattage
2500 W
UPC
783585000000
Type
Standard Duplex
Carton Quantity
10
Series
Extra Heavy Duty
Nema Rating
5-20R
Mounting Hardware Material
Screw Mounting
Brand
Hubbell Wiring Device-Kellems
Weight
0.25 lb
Maximum Horsepower
1
Amperage
20 A
Connectivity
Back and Side Wired Screw Terminals
Polarized
Yes
UL 94 Flammability Rating
V-0, V-2
Maximum Operating Temperature
167 Degrees F
Grade
Federal Specification
Shrouded
No
Connection Orientation
Straight
For Location
Indoor
Housing Material
Nylon (Face)
Cover Type
No Cover
Includes Mounting Hardware
Yes
GFCI
No
Horsepower Rating
1 hp
AFCI
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
NEMA Enclosure Rating
1
Market
Industrial
Contact Material
Nickel-Plated Brass
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
Receptacle Grade
Extra Heavy Duty Spec Grade
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Ground Screw Material
#10-32 Silicon Bronze (Green)
Rating
20A, 125V
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Standard
NEMA
Face Style
Finder Groove
Auto Ground Clip Material
Stainless Steel
Mounting Screw Material
Steel-Zinc Plated
Power Contacts Material
.037" (.9) Brass
Dielectric Voltage
Withstands 2,000V minimum
Receptacle Style
Duplex
Current Interrupting
Certified for current interrupting at full rated current
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Face Shape
Traditional
Mounting Strap Material
.050" (1.3) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Base Material
Reinforced PET
Horsepower
1
Flammability
UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Top Material
Nylon
Poles and Wires
2 Pole, 3-Wire Grounding
Device Color
Red
Horsepower - Maximum
1
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
• Back wired ground terminal allows faster, easier installation
• One-piece brass integral ground strap
• Finder Groove Face
• Deep body design with circuit ID face
