Shop HUBBELL WIRING DEVICE-KELLEMS

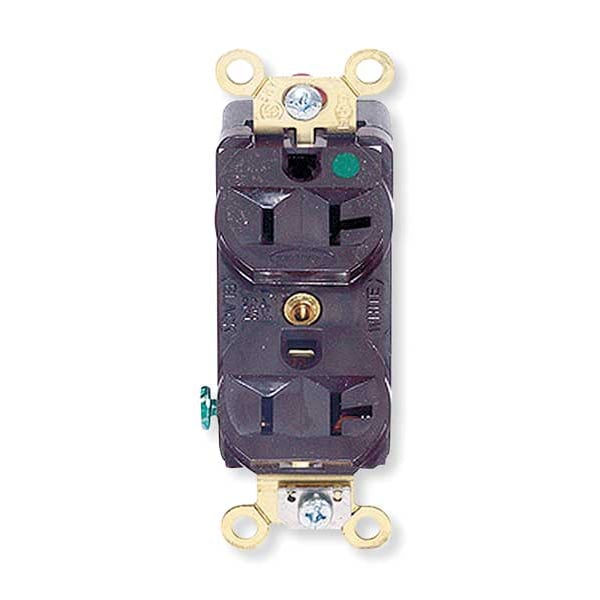

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300H

  • Zoro # G1254802

product price:  $31.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL8300H
Zoro #
G1254802
UPC #
783585015897
Country of Origin
United States

Dimensions

Display Size
Slender/Compact
Dimensions
3.28 in x 1.33 in x 1.05 in
Wire Size
#12 AWG to #10 AWG
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Overall Depth
1.1 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Height
1.05 in
Width
1.33 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Weather Resistant
No
Power Indicator
No
Color
Brown
Outlet Type
Duplex
NEMA Configuration
5-20
Application Environment
Heavy Use Hospital Grade
Number of Gangs
1
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
Sub-Category
Duplex Receptacles
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type - Plugs and Receptacles
Flush
Corrosion Resistant
No
HP
1 hp
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Thermoplastic
Series
Hospital Grade
Type
Receptacle
Amperage
20 A
Connectivity
Back and Side Wired Screw Terminals
Nema Rating
5-20R
Style
Finder Groove Face
Maximum Horsepower
1
Number Of Wires
3-Wire
Carton Quantity
10
Dielectric Strength
Withstands 2,000V minimum
Brand
Hubbell Wiring Device-Kellems
Surge Protection
No
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-0
GFCI
No
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
Horsepower Rating
1 hp
Cover Type
No Cover
Shrouded
No
Polarized
Yes
Grade
Hospital Grade Fed. Spec.
Market
Commercial
AFCI
No
Contact Material
Brass
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Device Grade
Compact Slender
Poles and Wires
2 Pole, 3 Wire
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Device Color
Brown
Flammability
UL 94 V-0
Certifications
FED SPEC Listed
Current Interrupting
Certified for current interrupting at full rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Slender/Compact Hospital Grade
Horsepower - Maximum
1
Wattage
2500 W
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• Slender/compact design
• Impact-resistant finder groove face
• Triple wipe contacts
