  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

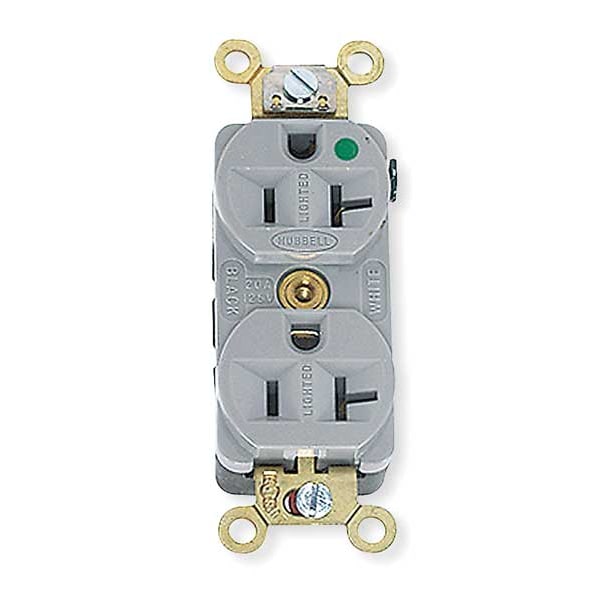

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8300HG - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300HG

  • Zoro # G1564297

product price:  $33.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8300HG
Zoro #
G1564297
UPC #
783585015903
Country of Origin
United States

Dimensions

Dimensions
3.28 in x 1.33 in x 1.05 in
Wire Size
#12 AWG to #10 AWG
Display Size
Slender/Compact
Overall Depth
1.1 in
Face Plate Height
2.7 in
Face Plate Width
1.3 in
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Height
1.05 in
Length
3.28 in
Width
1.33 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
Number of Gangs
1
Material
Thermoplastic
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
NEMA Configuration
5-20
Power Indicator
No
Sub-Category
Duplex Receptacles
Surge Suppression
No
Weather Resistant
No
Outlet Type
Duplex
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Application Environment
Heavy Use Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
HP
1 hp
Corrosion Resistant
No
Number Of Wires
3-Wire
Carton Quantity
10
Brand
Hubbell Wiring Device-Kellems
Amperage
20 A
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired Screw Terminals
Nema Rating
5-20R
Type
Receptacle
Maximum Horsepower
1
Series
Hospital Grade
Style
Finder Groove Face
Grade
Hospital Grade Fed. Spec.
NEMA Enclosure Rating
1
For Location
Indoor
UL 94 Flammability Rating
V-0
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
GFCI
No
Maximum Operating Temperature
167 Degrees F
Housing Material
Thermoplastic
AFCI
No
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Shrouded
No
Polarized
Yes
Contact Material
Brass
Surge Protection
No
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Market
Commercial
Cover Type
No Cover
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Poles and Wires
2 Pole, 3 Wire
Flammability
UL 94 V-0
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Gray
Device Grade
Compact Slender
Current Interrupting
Certified for current interrupting at full rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Certifications
FED SPEC Listed
Application
Slender/Compact Hospital Grade
Wattage
2500 W
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
1

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• Slender/compact design
• Impact-resistant finder groove face
• Triple wipe contacts
