- Item

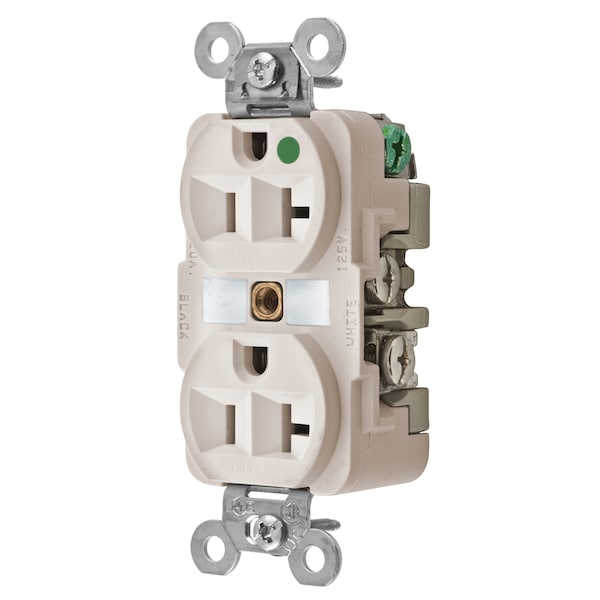

- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-20R
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Back, Side
- Grounding
- Grounded
- Housing Color
- Light Almond
- Mount Type
- Flush
- IP Rating
- IP20
- Standards
- C22.2, CSA Certified, No. 42, UL Listed
- Resistance Properties
- Impact Resistant
- Flange Type
- Non-Flanged
- Type
- Receptacle
- Color
- Light Almond
- Carton Quantity
- 10
- Connectivity
- Back and Side Wired Screw Terminals
- Style
- Finder Groove Face
- Maximum Horsepower
- 1
- Brand
- Hubbell Wiring Device-Kellems
- Number Of Wires
- 3-Wire
- Nema Rating
- 5-20R
- Amperage
- 20 A
- Series
- Hospital Grade
- Dielectric Strength
- Withstands 2,000V minimum
- Application
- Extra Heavy Duty Hospital Grade
- Material
- Thermoplastic
- Mounting Screw Material
- Stainless Steel
- Face Style
- Finder Groove
- Top Material
- Impact Modified PBT
- Horsepower
- 1
- Poles and Wires
- 2 Pole, 3-Wire Grounding
- Mounting Strap Material
- .050" (1.3) Brass-Ni Plated
- Dielectric Voltage
- Withstands 2,000V minimum
- Power Contacts Material
- .037" (.9) Brass - Ni Plated
- Flammability
- UL 94 V0 and UL 94-5 VA., UL 94 V-0
- Rating
- 20A, 125V
- Base Material
- Reinforced PET
- Receptacle Grade
- Hospital Grade
- Certification
- UL Listed, File E2186, Guide RTRT Fed Spec WC596G, Hospital Grade Meets NEMA WD-1 Heavy Duty and WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable
- Receptacle Style
- Duplex
- Product Type
- Flush-receptacles
- Terminal Accommodation
- #12-#10 AWG stranded or solid copper wire only
- Face Shape
- Traditional
- Current Interrupting
- Certified for current interrupting at full rated current
- Other Available Colors
- Brown, Ivory, Gray, Red, White, Blue, Light Almond
- Temperature Rise
- Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
- Terminal Identification
- Terminals identified in accordance with UL 498 and CSA
- Standard
- NEMA
- Auto Ground Clip Material
- Stainless Steel
- Terminal Screw Material
- #10-32 Silicon Bronze (Ni plate if neutral)
- Operating Temperatures
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Device Color
- Light Almond
- Ground Screw Material
- #10-32 Silicon Bronze (Green)
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - UL 94 V-0
Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
Mechanical - Product Identification - Ratings are a permanent part of the device
Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wattage
- 2500 W
- Horsepower - Maximum
- 1
- Material - Mounting Hardware
- Screw Mounting
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Industry Standard(s)
- CSA Certified, C22.2, No. 42 File 285
Fed. Spec. W-C-596
NEMA® WD-6 Compliant
UL Listed to UL498 File No. E2186
