  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

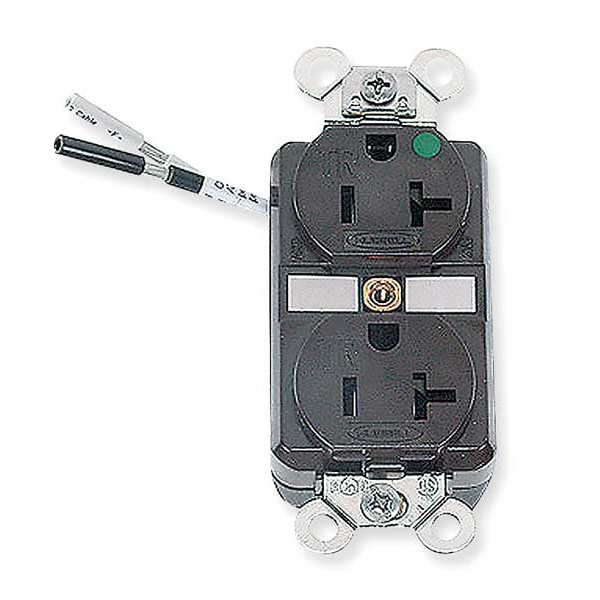

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8300SGA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300SGA

  • Zoro # G0541886

product price:  $52.75
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8300SGA
Zoro #
G0541886
UPC #
783585152271
Country of Origin
China

Dimensions

Wire Size
#12 AWG to #10 AWG
Dimensions
3.29 in x 1.65 in x 1.27 in
Display Size
Standard Sized Product
Face Plate Height
2.7 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Width
1.65 in
Height
1.27 in
Length
3.29 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Color
Brown
Power Indicator
No
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Tamper Resistant
Yes
Sub-Category
Duplex Receptacles
Mounting Type
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type
Duplex
Wiring Method - Plugs and Receptacles
Wire Lead
Corrosion Resistant
No
Application Environment
Heavy Use Hospital Grade
Ligature Resistant
Yes
Material
Thermoplastic
Number of Gangs
1
Weather Resistant
No
HP
1 hp
NEMA Configuration
5-20
Weather Resistant - Plugs and Receptacles
No
Voltage
125VAC
Mounting Type - Plugs and Receptacles
Flush
Type
Receptacle
Nema Rating
5-20R
Carton Quantity
10
Series
Hospital Grade
Number Of Wires
3-Wire
Connectivity
Wire Leads
Maximum Horsepower
1
Style
Finder Groove Face
Dielectric Strength
Withstands 2,000V minimum
Brand
Hubbell Wiring Device-Kellems
Amperage
20 A
Shrouded
No
Grade
Hospital Grade Fed. Spec.
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
Horsepower Rating
1 hp
AFCI
No
Contact Material
Nickel-Plated Brass
GFCI
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
5VA, V-0
For Location
Indoor
Cover Type
No Cover
Connection Orientation
Straight
Polarized
Yes
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
Surge Protection
No
Flammability
UL 94V-0 and UL 94-5 VA
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Voltage
Withstands 2,000V minimum
Ground Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
IP Suitability
IP20
Poles and Wires
2 Pole, 3 Wire
Current Interrupting
Certified for current interrupting at full rated current
Device Color
Brown
Device Grade
Heavy Duty Spec Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Application
Extra Heavy Duty Hospital Grade
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-0 and UL 94-5 VA Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Ground Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
2500 W
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• Unique tamper-resistant contact mechanism prevents injury
• Integral wire leads for fast installation and no exposed live parts
• One-piece nickel-plated brass ground strap
• I.D. marking surface helps in quick circuit identification
