  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

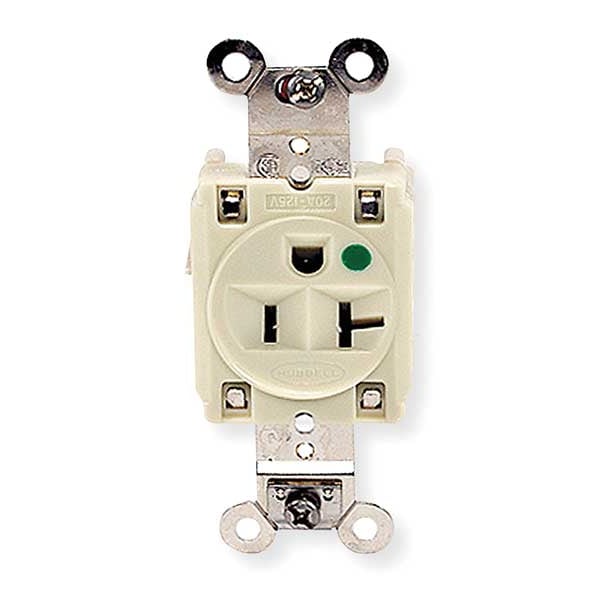

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8310I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8310I

  • Zoro # G0372461

product price: $32.65
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8310I
Zoro #
G0372461
UPC #
783585015941
Country of Origin
United States

Dimensions

Width
1.63 in
Height
1.19 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
1.9 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Minimum Wire Size
12 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.63 in x 1.19 in
Wire Size
#12 AWG to #10 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
impact-resistant
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Single Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Single
Outlet Type
Single
Application Environment
Heavy Use Hospital Grade
Surge Suppression
No
Corrosion Resistant
No
Power Indicator
No
Weather Resistant
No
Mounting Type
Flush
Voltage
125VAC
HP
1 hp
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Material
Impact Modified PBT/Reinforced PET
Number of Gangs
1
Tamper Resistant
No
Type
Single
AFCI
No
UL 94 Flammability Rating
5VA, V-0, V-2
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade Fed. Spec.
Horsepower Rating
1 hp
NEMA Enclosure Rating
1
Shrouded
No
Connection Orientation
Straight
Polarized
Yes
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
GFCI
No
Contact Material
Brass
Surge Protection
No
Housing Material
Nylon
Includes Mounting Hardware
Yes
Poles and Wires
2 Pole, 3 Wire
Device Color
Ivory
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Current Interrupting
Certified for current interrupting at full rated current
Flammability
Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA
Nema Rating
5-20R
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Style
Finder Groove Face
Wattage
2500 W
Horsepower - Maximum
1
Series
Hospital Grade
Application
Extra Heavy Duty Hospital Grade
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

The HUBBELL 5-20R Hospital Grade Single Receptacle is a flush mount electrical outlet rated for 20A and 125V AC. Rated for extra heavy duty applications, this single straight blade receptacle features a grounded configuration with back and side wired screw terminals. It meets hospital grade standards as specified; suitable for use in indoor environments as rated.


Key Features of the HUBBELL 5-20R Hospital Grade Single Receptacle:

  • Amperage/Voltage: Rated for 20A, 125V AC

  • NEMA Configuration: 5-20R, single outlet

  • Mounting Type: Flush mount with included mounting hardware

  • Wiring Method: Back and side wired screw terminals; accommodates #12–#10 AWG stranded or solid copper wire

  • Contact Material: Brass contacts with nickel-plated bypass contact design

  • Grounding System: Four-point grounding system designed to support ground continuity

  • Material Construction: Impact modified PBT/reinforced PET body with nylon housing; impact-resistant deep face design

  • Dielectric Strength & Flammability Ratings: Withstands minimum 2,000V dielectric voltage; UL94 V-0/V-2/5VA flammability ratings (top/base)

  • Circuit Interrupting Capability: Certified for current interrupting at full rated current
