  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

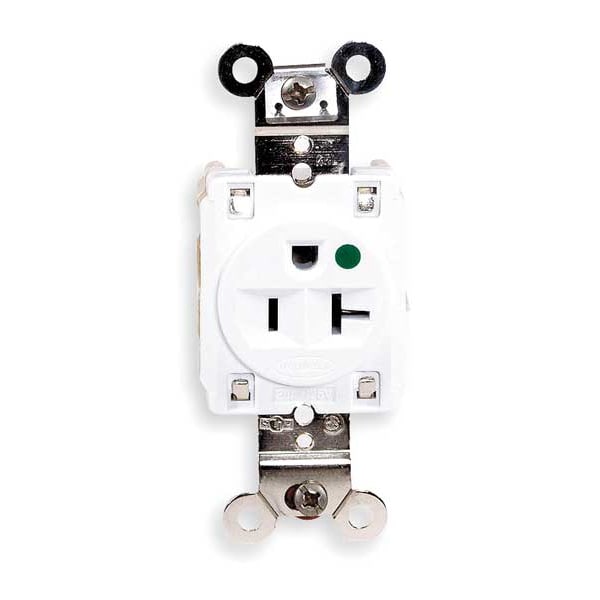

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8310W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8310W

  • Zoro # G2689547

product price: $30.99
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8310W
Zoro #
G2689547
UPC #
783585016313
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.63 in
Minimum Wire Size
12 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Overall Depth
1.2 in
Face Plate Height
1.9 in
Mount Hole Center-to-Center Height
3.3 in
Wire Size
#12 AWG to #10 AWG
Length
3.28 in
Dimensions
3.28 in x 1.63 in x 1.19 in
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Single
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
No
Wiring Method
Back, Side
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Voltage
125VAC
Sub-Category
Single Receptacles
Power Indicator
No
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Single
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
HP
1 hp
Mounting Type
Flush
NEMA Configuration
5-20
Material
Nylon/Reinforced Thermoplastic Polyester
Application Environment
Heavy Use Hospital Grade
Corrosion Resistant
No
Type
Single
Grade
Hospital Grade Fed. Spec.
AFCI
No
For Location
Indoor
Housing Material
Nylon
UL 94 Flammability Rating
5VA, V-0, V-2
NEMA Enclosure Rating
1
Contact Material
Brass
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
Polarized
Yes
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Shrouded
No
Connection Orientation
Straight
Includes Mounting Hardware
Yes
GFCI
No
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Device Color
White
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Poles and Wires
2 Pole, 3 Wire
Current Interrupting
Certified for current interrupting at full rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Voltage
Withstands 2,000V minimum
Flammability
Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1
Style
Finder Groove Face
Series
Hospital Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-20R
Application
Extra Heavy Duty Hospital Grade
Wattage
2500 W
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

The HUBBELL 5-20R Hospital Grade Receptacle is a single flush mount outlet rated for 20A and 125V AC. Suitable for use in applications requiring higher durability, it features a one-piece nickel-plated brass integral ground strap and patented bypass contact design. This receptacle meets hospital grade requirements.


Key Features of the HUBBELL 5-20R Hospital Grade Receptacle:

  • Amperage/Voltage: Rated for 20A, 125V AC

  • NEMA Configuration: 5-20R (2 pole, 3 wire, grounded)

  • Mounting Type: Flush mount with included mounting hardware

  • Wiring Method: Back and side wired screw terminals; accommodates #12–#10 AWG copper wire

  • Material: Nylon/reinforced thermoplastic polyester housing with brass contacts

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Dielectric Strength: Withstands minimum of 2,000V

  • Flammability Ratings: Top UL94V-2; Base UL94V-0 & UL94-5VA

  • Certifications/Standards: CSA C22.2 No.42 File 285; Federal Spec W-C-596; NEMA WD-6; UL498 File E2186
