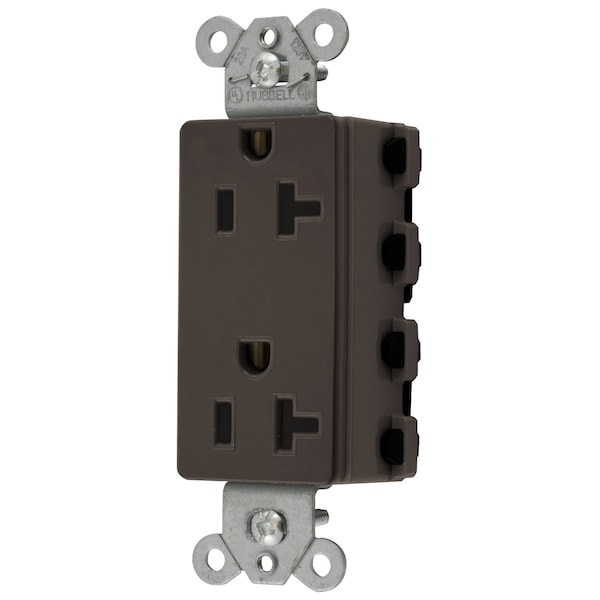

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP2162A

  • Zoro # G900490083


product price: $12.02
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2162A
Zoro #
G900490083
UPC #
783585248097
Country of Origin
China

Dimensions

Dimensions
3.28 in x 1.64 in x 1.1 in
Display Size
Standard Sized Product
Wire Size
#12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
C22.2, Certified to CSA, Fed. Spec. W-C-596, NEMA® WD-6 Compliant, No. 42 File 285, UL Listed to UL 498 File No. E2186
Flange Type
Non-Flanged
Color
Brown
Type
Standard Duplex
Maximum Horsepower
1
Series
Extra Heavy Duty
Number Of Wires
3-Wire
Carton Quantity
10
Nema Rating
5-20R
Number Of Conductors
3-Wire Grounding
Connectivity
Connectorized
Material
Nylon
Application
Extra Heavy Duty Specification Grade
Amperage
20 A
Style
Style Line Decorator
Brand
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Base
PBT
Dielectric Voltage
Withstands 2,000V minimum
Face
Nylon
Mounting Strap
Galvanized steel
Current Interrupting
Receptacle certified for current interrupting at full rated current
Auto Self-grounding Staple
Stainless steel
Device Color
Brown
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Contacts
Brass
Flammability
UL 94V-2
Mounting Screws
Zinc plated steel

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Decorator Duplex, SNAPConnect 2, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown, USA
