Shop HUBBELL WIRING DEVICE-KELLEMS

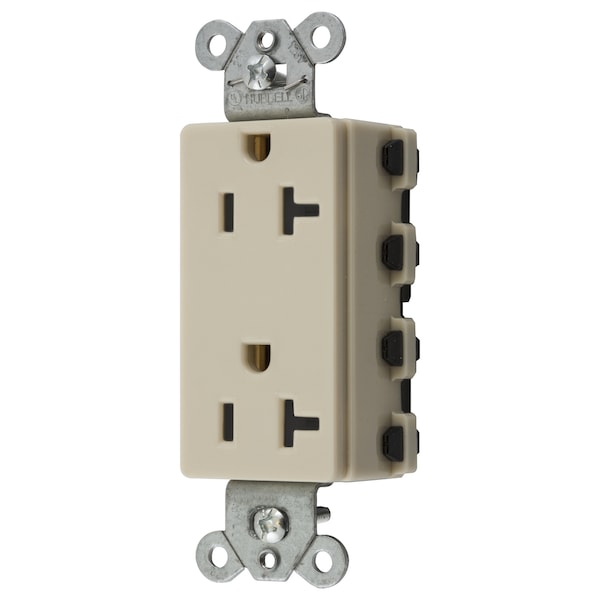

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP2162IA

  • Zoro # G500490087

product price:
$
12.65
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SNAP2162IA
Zoro #
G500490087
UPC #
783585248059
Country of Origin
China

Dimensions

Dimensions
3.28 in x 1.64 in x 1.1 in
Display Size
Standard Sized Product
Wire Size
#12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
C22.2, Certified to CSA, Fed. Spec. W-C-596, NEMA® WD-6 Compliant, No. 42 File 285, UL Listed to UL 498 File No. E2186
Flange Type
Non-Flanged
Series
Extra Heavy Duty
Application
Extra Heavy Duty Specification Grade
Type
Standard Duplex
Color
Ivory
Amperage
20 A
Material
Nylon
Nema Rating
5-20R
Brand
Hubbell Wiring Device-Kellems
Connectivity
Connectorized
Dielectric Strength
Withstands 2,000V minimum
Number Of Conductors
3-Wire Grounding
Number Of Wires
3-Wire
Carton Quantity
10
Maximum Horsepower
1
Style
Style Line Decorator
Base
PBT
Face
Nylon
Flammability
UL 94V-2
Dielectric Voltage
Withstands 2,000V minimum
Contacts
Brass
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Current Interrupting
Receptacle certified for current interrupting at full rated current
Mounting Screws
Zinc plated steel
Mounting Strap
Galvanized steel
Device Color
Ivory
Auto Self-grounding Staple
Stainless steel

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Decorator Duplex, SNAPConnect 2, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Ivory
