  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

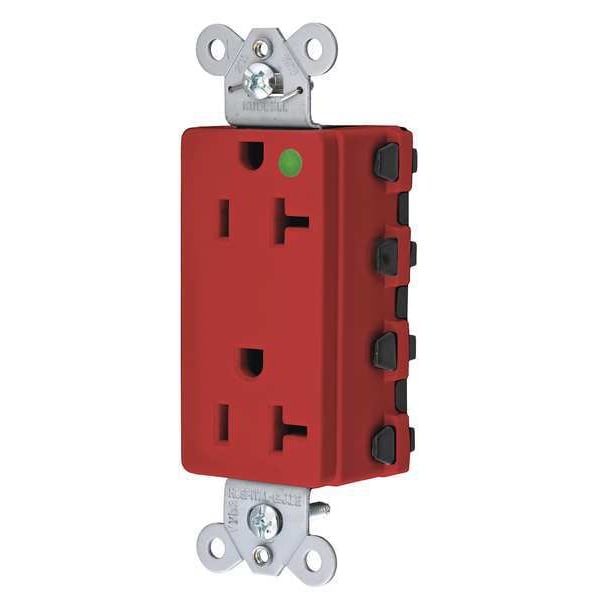

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP2182RA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP2182RA

  • Zoro # G4575663

product price: $24.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2182RA
Zoro #
G4575663
UPC #
783585247878
Country of Origin
China

Dimensions

Height
1.1 in
Width
1.64 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Face Plate Height
2.6 in
Maximum Wire Size
12 AWG
Overall Depth
1.1 in
Dimensions
3.28 in x 1.64 in x 1.1 in
Display Size
Standard Sized Product
Wire Size
#12 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
Surge Suppression
No
Voltage
125VAC
Application Environment
Heavy Use Hospital Grade
Power Indicator
No
Material
Nylon
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Decorator Duplex
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Outlet Type
Decorator
Number of Gangs
1
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Modular
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Duplex Receptacles
NEMA Configuration
5-20
Type
Style Line
For Location
Indoor
Housing Material
Nylon
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-2
AFCI
No
Contact Material
Brass
Shrouded
No
GFCI
No
Grade
Hospital Grade Fed. Spec.
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Horsepower Rating
1 hp
NEMA Enclosure Rating
1
Includes
Grounding Clip, Mounting Hardware
Cover Type
No Cover
Includes Mounting Hardware
Yes
Ground Contacts
Brass
Device Color
Red
Base
PBT
Current Interrupting
Receptacle certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Face
Nylon
Power Contacts
Brass
Mounting Screws
Zinc plated steel
Mounting Strap
Galvanized steel
Flammability
UL 94V-2
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Automatic Self-grounding Staple
Stainless steel
Wattage
2500 W
Number Of Conductors
3-Wire Grounding
Nema Rating
5-20R
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Style
Style Line Decorator
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
1
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Hospital Grade
Application
Hospital Grade
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)

Description

SNAPConnect® Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnect’s modular design enables simple device change-out by maintenance personnel.
• Audible SNAP, indicates solid connection
• Reduces installation time
• Fully insulated design
