  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

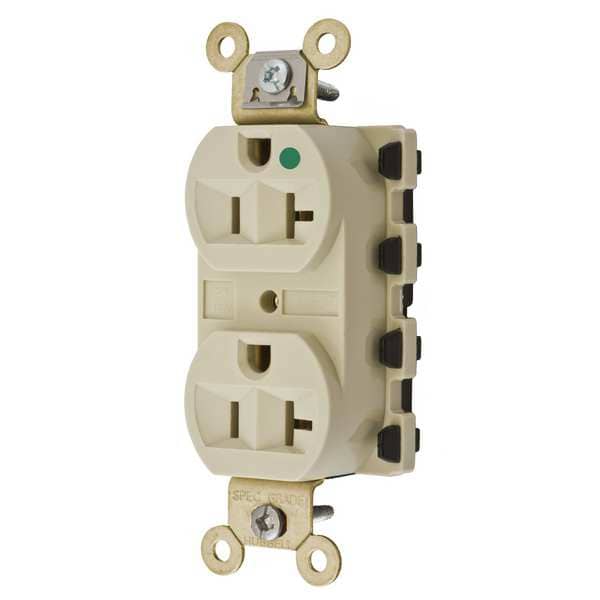

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP8300IA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP8300IA

  • Zoro # G4632503

product price: $22.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP8300IA
Zoro #
G4632503
UPC #
783585247656
Country of Origin
China

Dimensions

Dimensions
3.28 in x 1.64 in x 1.1 in
Display Size
Standard Sized Product
Wire Size
#12 AWG
Face Plate Width
1.6 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Overall Depth
1.1 in
Width
1.64 in
Height
1.1 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Flange Type
Non-Flanged
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Outlet Type
Duplex
Wiring Method - Plugs and Receptacles
Modular
Color
Ivory
Application Environment
Heavy Use Hospital Grade
Corrosion Resistant
No
Material
Nylon
Power Indicator
No
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Voltage
125VAC
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
No
Tamper Resistant
No
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Number Of Conductors
3-Wire Grounding
Connectivity
Connectorized
Nema Rating
5-20R
Dielectric Strength
Withstands 2,000V minimum
Type
Standard Duplex
Style
Finder Groove Face
Series
Hospital Grade
Brand
Hubbell Wiring Device-Kellems
Number Of Wires
3-Wire
Maximum Horsepower
1
Carton Quantity
10
Amperage
20 A
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Contact Material
Brass
NEMA Enclosure Rating
1
AFCI
No
Housing Material
Nylon
GFCI
No
Includes Mounting Hardware
Yes
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Grade
Hospital Grade Fed. Spec.
Shrouded
No
Horsepower Rating
1 hp
Surge Protection
No
UL 94 Flammability Rating
V-2
Polarized
Yes
Ground Contacts
Brass
Device Color
Ivory
Mounting Screws
Zinc plated steel
Face
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Mounting Strap
Brass
Automatic Self-grounding Clip
Stainless steel
Flammability
UL 94V-2
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Power Contacts
Brass
Current Interrupting
Receptacle certified for current interrupting at full rated current
Base
PBT
Application
Hospital Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Horsepower - Maximum
1
Wattage
2500 W

Description

The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R IV is a hospital grade, duplex straight blade receptacle suitable for modular wiring installations. Featuring SNAPConnect® technology, this device enables installation of the connector during rough-in, with subsequent placement after wall finishing. The receptacle facilitates electrical connections and enables change-outs by maintenance personnel.


Key Features of the HUBBELL 20A Duplex Modular Receptacle:

  • Amperage/Voltage: Rated for 20 A at 125 VAC

  • NEMA Configuration: 5-20R, duplex outlet type

  • Wiring Method: Modular back-wired connection with SNAPConnect® system

  • Application Environment: Hospital Grade Fed. Spec., suitable for heavy use environments

  • Grounding: Grounded with stainless steel automatic self-grounding clip and brass ground contacts

  • Material Construction: Nylon face and housing; PBT base; brass power contacts; zinc plated steel mounting screws; brass mounting strap

  • Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage; UL94 V-2 flammability rating

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Standards Compliance: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186

  • Circuit Interrupting Capability: Certified for current interrupting at full rated current (20 A)
