  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

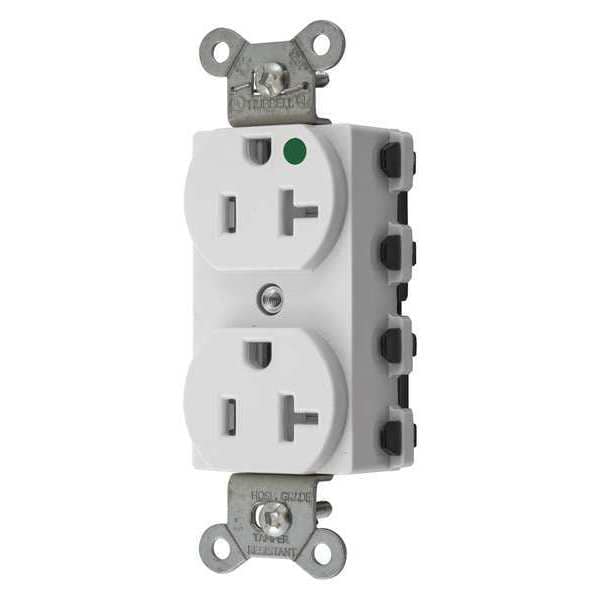

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP8300WTRA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP8300WTRA

  • Zoro # G4440521

product price: $28.95
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP8300WTRA
Zoro #
G4440521
UPC #
783585193373
Country of Origin
Mexico

Dimensions

Width
1.64 in
Height
1.1 in
Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Overall Depth
1.1 in
Maximum Wire Size
12 AWG
Display Size
Standard Sized Product
Wire Size
#12 AWG
Length
3.28 in
Dimensions
3.28 in x 1.64 in x 1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Color
White
Item - Plugs and Receptacles
Receptacle
Description
Finder Groove
NEMA Rating
1
HP
1 hp
Mounting Type
Flush
Voltage
125VAC
Corrosion Resistant
No
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
Color - Plugs and Receptacles
White
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Modular
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Configuration
5-20
Material
Nylon
Weather Resistant
No
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial
Amps
20
Sub-Category
Duplex Receptacles
Amps - Plugs and Receptacles
20 A
Tamper Resistant
Yes
Voltage - Plugs and Receptacles
125V AC
Amps - Plugs and Receptacles
20
NEMA Enclosure Rating
1
Includes
Wall Plate or Weatherproof Cover
Horsepower Rating
1 hp
Surge Protection
No
GFCI
No
Polarized
Yes
For Location
Indoor
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Grade
Hospital Grade Fed. Spec.
AFCI
No
Contact Material
Brass
Housing Material
Nylon
Market
Commercial
Shrouded
No
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Device Color
White
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Power Contacts
Brass
Ground Contacts
Brass
Base
PBT
Face
Nylon
Mounting Screws
Zinc plated steel
Dielectric Voltage
Withstands 2,000V minimum
Mounting Strap
Galvanized steel
Flammability
UL 94V-2
Automatic Self-grounding Staple
Stainless steel
Current Interrupting
Receptacle certified for current interrupting at full rated current
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Number Of Conductors
3-Wire Grounding
Item Type
Smooth Face
Amperage Rating
20 A
Horsepower - Maximum
1
Series
Hospital Grade
Wattage
2500 W
Type
Tamper-Resistant
Application
Hospital Grade
Style
Smooth Face
Voltage Rating Description
125 V
Connectivity
Connectorized
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Dielectric Strength
Withstands 2,000V minimum
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Current / Amperage Rating
20 A

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
