  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

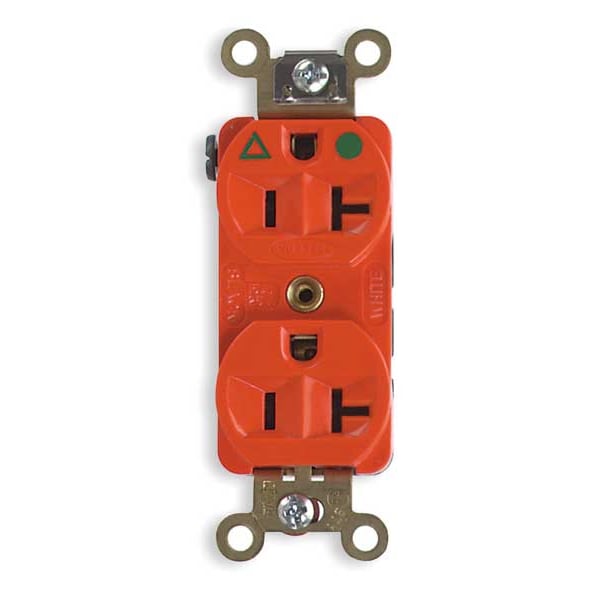

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground IG8300 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG8300

  • Zoro # G1441447

product price:  $47.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG8300
Zoro #
G1441447
UPC #
783585778440
Country of Origin
United States

Dimensions

Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.33 in x 1.05 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Face Plate Width
1.4 in
Overall Depth
1.1 in
Minimum Wire Size
12 AWG
Maximum Wire Size
10 AWG
Width
1.33 in
Height
1.05 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Application Environment
Heavy Use Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Duplex
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Color
Orange
HP
1 hp
Wiring Method
Back, Side
Material
Thermoplastic
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
Surge Suppression
No
Mounting Type
Flush
Sub-Category
Duplex Receptacles
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
NEMA Configuration
5-20
Special Features
Isolated Ground
Corrosion Resistant
No
Carton Quantity
10
Application
Extra Heavy Duty Hospital Grade
Maximum Horsepower
1
Type
Duplex Receptacle
Series
Extra Heavy Duty Hospital Grade
Amperage
20 A
Connectivity
Back and Side Wired Screw Terminals
Dielectric Strength
Withstands 2,000V minimum
Brand
Hubbell Wiring Device-Kellems
Number Of Wires
3-Wire
Style
Finder Groove Face
Nema Rating
5-20R
Includes Mounting Hardware
Yes
Cover Type
No Cover
AFCI
No
UL 94 Flammability Rating
V-2
Polarized
Yes
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade Fed. Spec.
Horsepower Rating
1 hp
Contact Material
Brass
Shrouded
No
GFCI
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Surge Protection
No
NEMA Enclosure Rating
1
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Housing Material
Thermoplastic
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
2 Pole, 3 Wire
Flammability
UL 94V-2
Device Color
Orange
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Device Grade
Isolated Ground
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
1875 W
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
1

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Housing Color Orange, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant
