Shop HUBBELL WIRING DEVICE-KELLEMS

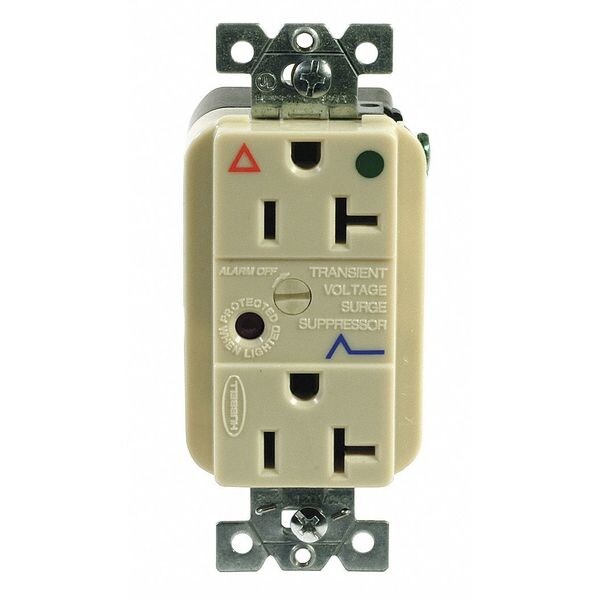

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG8362ISA

  • Zoro # G6765595

product price:
$
120.99
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IG8362ISA
Zoro #
G6765595
UPC #
783585060934
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Overall Depth
4 in
Face Plate Width
1.3 in
Display Size
Standard

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Isolated Ground
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, UL 498, UL E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
Yes
Corrosion Resistant
No
Outlet Type
Decorator
Power Indicator
Yes
Number of Gangs
1
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Tamper Resistant
No
Sub-Category
Duplex Receptacles
NEMA Configuration
5-20
Special Features
Audible Alarm
Voltage
125VAC
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Hospital Grade
Wiring Method - Plugs and Receptacles
Back
Material
Nylon
Surge Protection
Yes
Visual Indicator Lights
Power Connected
Horsepower Rating
1 hp
Polarized
Yes
NEMA Enclosure Rating
1
AFCI
No
For Location
Indoor
Shrouded
No
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
32 Degrees F
GFCI
No
Grade
Hospital Grade Fed. Spec.
Housing Material
Nylon
Connection Orientation
Straight
Cover Type
No Cover
Poles and Wires
2 Pole, 3 Wire
Device Grade
Isolated Ground
Outlet
Straight Blade
Response Time
5
Application
Decorator Duplex with Light and Alarm
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Frequency Rating
60 Hz
Indicator(s) Type
LED and Audible Alarm
Nema Rating
5-20R
Performance
Electrical - Frequency - 60Hz Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs) Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
Industry Standard(s)
CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 Receptacles UL Listed File E2186
Material - Mounting Hardware
Mounting Screws
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Series
Hospital Grade
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Isolated Ground

Description

The HUBBELL Receptacle is a 20A, 125V AC decorator duplex outlet suitable for flush mounting in indoor locations. It features isolated grounding and includes integrated surge suppression with both LED power indicator and audible alarm. The receptacle is constructed from impact-resistant nylon and meets hospital grade standards, making it suitable for use in electrical installations that require isolated grounding and transient suppression.


Key Features of the HUBBELL 5-20R Decorator Duplex Outlet:

  • Amperage/Voltage: Rated for 20A at 125V AC

  • Surge Protection: Includes integrated surge suppression with normal and common mode protection; response time approximately 5 ns

  • Grounding: Isolated ground design separates ground contacts from the mounting strap

  • Indicators: Power-on LED indicator light and audible alarm indicate device status

  • NEMA Configuration: 5-20R straight blade duplex outlet

  • Material: Impact-resistant nylon housing; UL 94V-2 flammability rating

  • Mounting Type: Flush mount with screw terminals; back wiring method supported

  • Standards Compliance: CSA Certified C22.2 No.42, UL Listed to UL498 (File E2186)

  • Operating Temperature Range: 32°F to 140°F (0°C to 60°C)
