  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

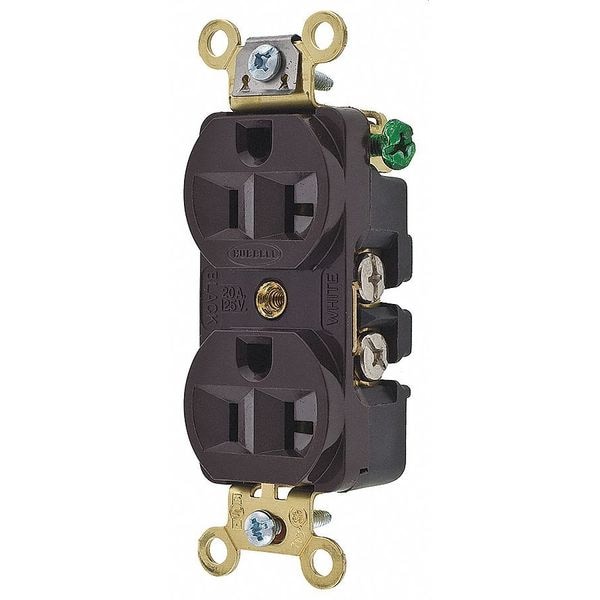

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown HBL5352 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # HBL5352

  • Zoro # G2604953

product price: $23.56
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5352
Zoro #
G2604953
UPC #
783585434964
Country of Origin
United States

Dimensions

Height
1.05 in
Dimensions
3.28 in x 1.33 in x 1.05 in
Length
3.28 in
Width
1.33 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Minimum Wire Size
12 AWG
Overall Depth
1.1 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
Flange Type
Non-Flanged
Outlet Type
Duplex
Material
Nylon/Reinforced PET
Color
Brown
Weather Resistant
No
Power Indicator
No
HP
1 hp
Number of Gangs
1
Surge Suppression
No
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
Voltage
125VAC
Sub-Category
Duplex Receptacles
Application Environment
Industrial
Outlet Type - Plugs and Receptacles
Standard Duplex
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-20
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Type
Standard Duplex
Weight
0.2 lb
Dielectric Strength
Withstands 2,000V minimum
UPC
783585000000
Application
Extra Heavy Duty Compact
Mounting Hardware Material
Screw Mounting
Wattage
2500 W
Amperage
20 A
Number Of Wires
3-Wire
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Connectivity
Back and Side Wired Screw Terminals
Series
Heavy Duty
Style
Finder Groove Face
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Carton Quantity
1
Nema Rating
5-20R
Brand
Hubbell Wiring Device-Kellems
Maximum Horsepower
1
AFCI
No
Housing Material
Nylon
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
Surge Protection
No
GFCI
No
UL 94 Flammability Rating
V-0
Polarized
Yes
For Location
Indoor
Cover Type
No Cover
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Horsepower Rating
1 hp
Grade
Federal Specification
NEMA Enclosure Rating
1
Contact Material
Brass
Includes Mounting Hardware
Yes
Market
Industrial
Horsepower
1
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Receptacle Grade
Compact Spec Grade
Mounting Strap Material
.050" (1.3) Brass
Flammability
UL 94 V-0, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Base Material
Reinforced PET
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts Material
.037" (.9) Phosphor Bronze
Receptacle Style
Duplex
Face Style
Finder Groove
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Auto Ground Clip Material
Stainless Steel
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Other Available Colors
Brown, Almond, Black, Blue, Gray, Ivory, Red, White
Standard
NEMA
Mounting Screw Material
Steel-Zinc Plated
Top Material
Nylon
Poles and Wires
2 Pole, 3-Wire Grounding
Device Color
Brown
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Current Interrupting
Certified for current interrupting at full rated current
Face Shape
Traditional
Rating
20A, 125V
Dielectric Voltage
Withstands 2,000V minimum
Horsepower - Maximum
1
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
