  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Grounded

This item is Discontinued.

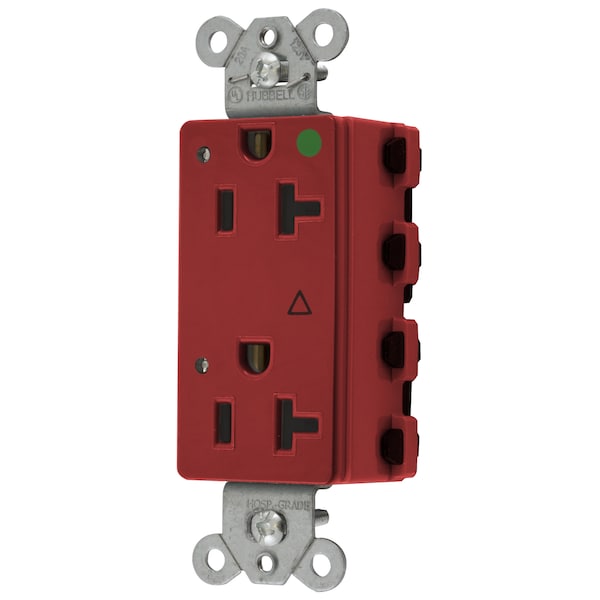

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Grounded SNAP2182RIGL

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Grounded (Discontinued)

  • Mfr # SNAP2182RIGL
  • Zoro # G600489950
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2182RIGL
Zoro #
G600489950
UPC #
783585249292
Country of Origin
China

Dimensions

Width
1.64 in
Height
1.1 in
Wire Size
#12 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.64 in x 1.1 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Grounded
Housing Color
Red
Standards
C22.2, CSA, NEMA WD-6, No. 42, UL Listed
Flange Type
Non-Flanged
Color
Red
Type
Power Indicating LED
Maximum Horsepower
1
Number Of Wires
3-Wire
Connectivity
Connectorized
Number Of Conductors
3-Wire Grounding
Style
Style Line Decorator
Nema Rating
5-20R
Carton Quantity
10
Amperage
20 A
Brand
Hubbell Wiring Device-Kellems
Indicator Type
Green LED
Material
Nylon
Dielectric Strength
Withstands 2,000V minimum
Series
Hospital Grade
Application
Hospital Grade
Flammability
UL 94V-2
Mounting Screws
Zinc plated steel
Current Interrupting
Receptacle certified for current interrupting at full rated current
Device Color
Red
Base
PBT
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Power Contacts
Brass
Mounting Strap
Galvanized steel
Face
Nylon
Automatic Self-grounding Staple
Stainless steel
Dielectric Voltage
Withstands 2,000V minimum
Ground Contacts
Brass
Horsepower - Maximum
1
Material - Mounting Hardware
Screw Mounting
Indicator(s) Type
Green LED
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
2500 W
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Decorator Duplex, SNAPConnect 2, LED Indicator, Hospital Grade, 20A125V,2-Pole 3-Wire Grounding, 5-20R, Red
