  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

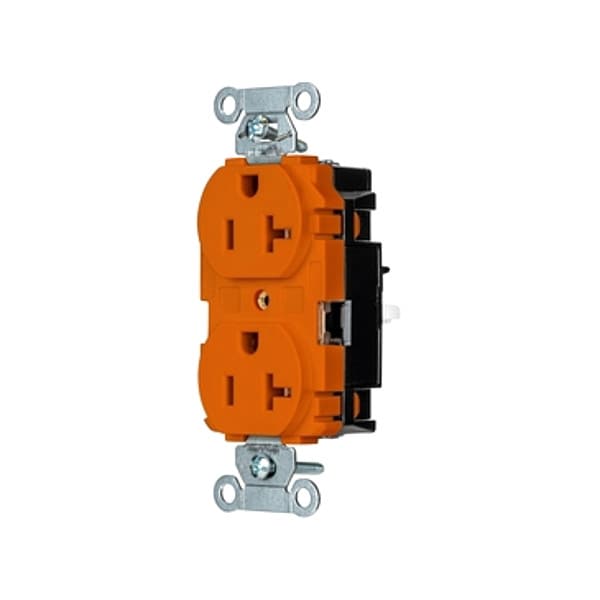

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 5352STO - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 5352STO

  • Zoro # G610877204

product price: $9.45
/ea
Sold in multiples of 10 for $94.50

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5352STO
Zoro #
G610877204
UPC #
783585727332
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Orange
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Number of Gangs
1
Housing Material
Thermoplastic
Includes
Mounting Hardware
GFCI
No
Horsepower Rating
1 hp
Polarized
Yes
Includes Mounting Hardware
Yes
Number of Outlets
2
Shrouded
No
For Location
Indoor
Market
Commercial
Grade
Federal Specification
Surge Protection
No
Cover Type
No Cover
Hub Type
Feed Through
Connection Orientation
Straight
Contact Material
Copper Alloy
For Environment
Dry
AFCI
No
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Orange, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
