  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

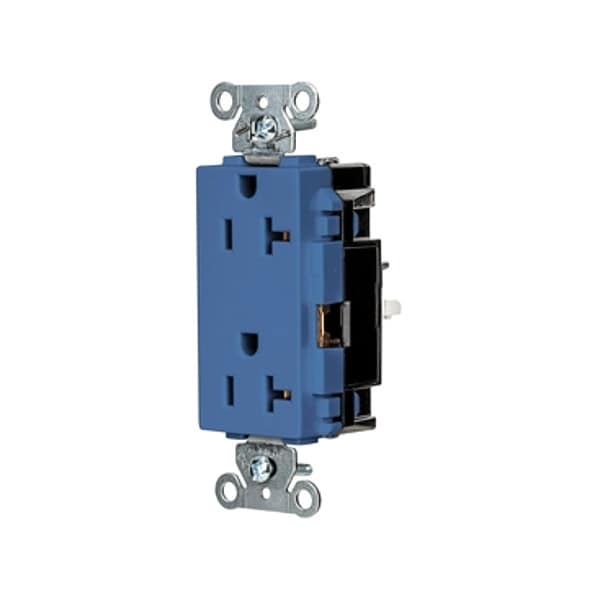

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded DR20STBL - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # DR20STBL

  • Zoro # G310986329

product price: $8.75
/ea
Sold in multiples of 100 for $875.00

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20STBL
Zoro #
G310986329
UPC #
783585728278
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Overall Depth
1.4 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Blue
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Visual Indicator Lights
Power Connected
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-2
Includes
Mounting Hardware
Contact Material
Copper Alloy
Hub Type
Feed Through
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
AFCI
No
For Environment
Dry
For Location
Indoor
Number of Outlets
2
NEMA Enclosure Rating
1
Cover Type
No Cover
Surge Protection
No
GFCI
No
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Grade
General Use
Shrouded
No
Market
Commercial
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
Number of Gangs
1
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Blue, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
