  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

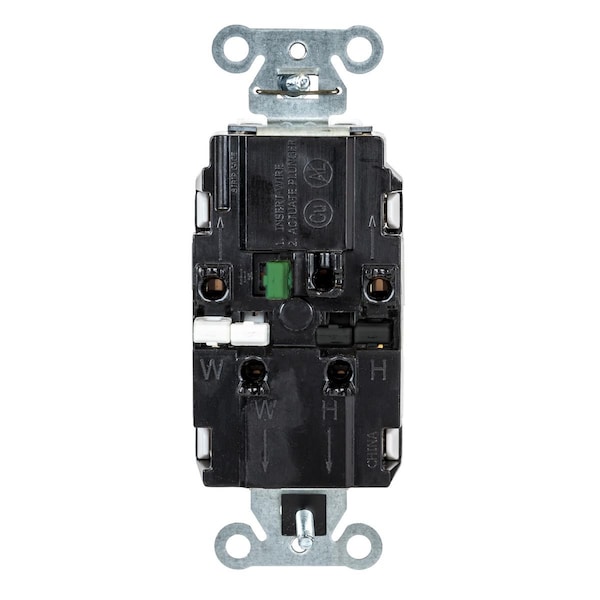

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded DR20STWTR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # DR20STWTR

  • Zoro # G710105610

product price: $12.35
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20STWTR
Zoro #
G710105610
UPC #
783585728452
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Includes
Mounting Hardware
Maximum Operating Temperature
167 Degrees F
Grade
General Use
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Number of Outlets
2
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Visual Indicator Lights
Power Connected
Contact Material
Copper Alloy
For Location
Indoor
Market
Commercial
Includes Mounting Hardware
Yes
GFCI
No
Shrouded
No
Hub Type
Feed Through
Surge Protection
No
Polarized
Yes
NEMA Enclosure Rating
1
Cover Type
No Cover
AFCI
No

Description

The HUBBELL EdgeConnectTM Receptacle is a decorator duplex, tamper-resistant electrical outlet suitable for commercial indoor use. It features a screwless, push-in wire termination system that enables installation without tools. The receptacle accommodates 14 to 10 AWG wires with back wiring and includes mounting hardware for surface mounting applications.


Key Features of the HUBBELL EdgeConnectTM Receptacle:

  • Current Rating: Rated for up to 20 A at 125V AC

  • NEMA Configuration: 5-20R, polarized and grounded

  • Wire Connection Type: Push-in, back-wired screwless termination

  • Contact Material: Copper alloy contacts with triple and double wipe design

  • Tamper Resistant: Includes internal shutters intended to limit access by foreign objects

  • Operating Temperature Range: -40°F to 167°F; rated for use in dry, indoor environments

  • Housing Material: Thermoplastic construction in white color

  • Includes Mounting Hardware: Yes; single gang configuration with two outlets
