  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

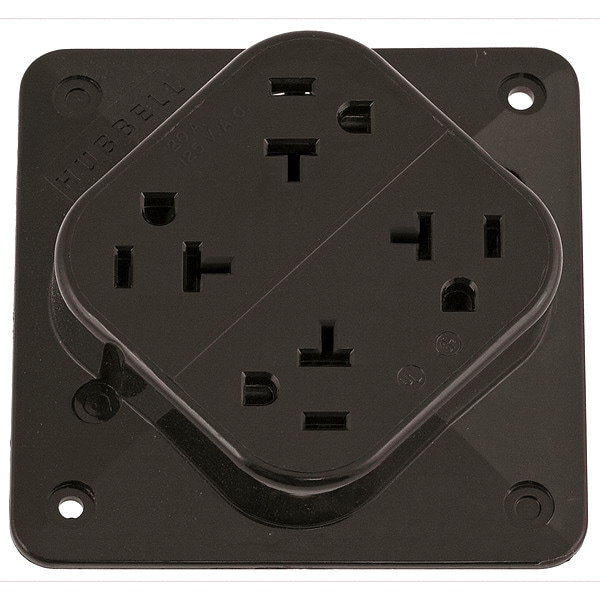

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL420 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL420

  • Zoro # G2593464

product price: $37.45
/ea

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL420
Zoro #
G2593464
UPC #
783585014098
Country of Origin
United States

Dimensions

Width
0.92 in
Height
4.30 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.4 in
Face Plate Height
4.3 in
Face Plate Width
4.3 in
Overall Depth
4.3 in
Mount Hole Center-to-Center Width
3.4 in
Wire Size
#12 AWG
Dimensions
4.30 in x 0.92 in x 4.30 in
Display Size
Standard Sized Product
Length
4.30 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Brown
Mount Type
Surface
Standards
CSA Certified C22.2 No. 42 File 285, NEMA WD-6, UL 498 File E2186
Flange Type
Non-Flanged
Application Environment
Commercial
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
2
Wiring Method
Back
Mounting Type - Plugs and Receptacles
Surface
HP
1 hp
Outlet Type
Quad
Wiring Method - Plugs and Receptacles
Back
Sub-Category
Four Outlet Receptacles
Tamper Resistant
No
Power Indicator
No
Outlet Type - Plugs and Receptacles
Quad
Corrosion Resistant
No
Surge Suppression
No
NEMA Configuration
5-20
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type
Surface
Material
polycarbonate
Voltage
125VAC
Shrouded
No
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-2
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Market
Commercial, Industrial
Connection Orientation
Straight
For Location
Indoor
Includes
4-PLEX Adapter Plate, 4-PLEX Portable Box
GFCI
No
NEMA Enclosure Rating
1
Grade
Federal Specification
Cover Type
No Cover
Housing Material
Polycarbonate
Contact Material
Brass
AFCI
No
Number of Outlets
4
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
Horsepower
1
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Rating
15A, 125V
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Flammability
UL 94 V2.
Current Interrupting
Capable of withstanding a fault level of 1000A, per UL498
Receptacle Style
Quad
Certification
Listed to UL Standard 498 File E2186 Certified to CSA 22.2, No. 42 File 285
Base Material
Polycarbonate
Device Color
Brown
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Standard
NEMA
Terminal Screw Material
#8-32 Brass, Multiple Drive
Receptacle Grade
Heavy Duty Spec Grade
Power Contacts Material
.032" (.81) Brass
Poles and Wires
2 Pole, 3-Wire Grounding
Dielectric Voltage
Withstands 2,000V minimum
Top Material
Polycarbonate
Other Available Colors
Brown, Black, Gray, Ivory, White
Terminal Accommodation
#12 AWG stranded or solid copper conductor only
Series
4-Outlet Receptacle
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Screw Mounting
Performance
Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498 Dielectric Voltage: Withstands 2,000V minimum Mechanical: Product Identification: Ratings are a permanent part of the device Terminal Accommodation: #12 AWG stranded or solid copper conductor only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental: Flammability: UL 94 V-2 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
Nema Rating
5-20R
Application
Industrial
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1
Dielectric Strength
Withstands 2,000V minimum
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Listed to UL Standard 498 File E2186 NEMA® WD-6 Compliant
Wattage
2500 W

Description

• Anchor hole and loop feature secures solid wire for fast, easy terminations
• Triple wipe contacts
• Easily accessible break-off tabs for split wiring
• Three conductors energize all four outlets
