  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

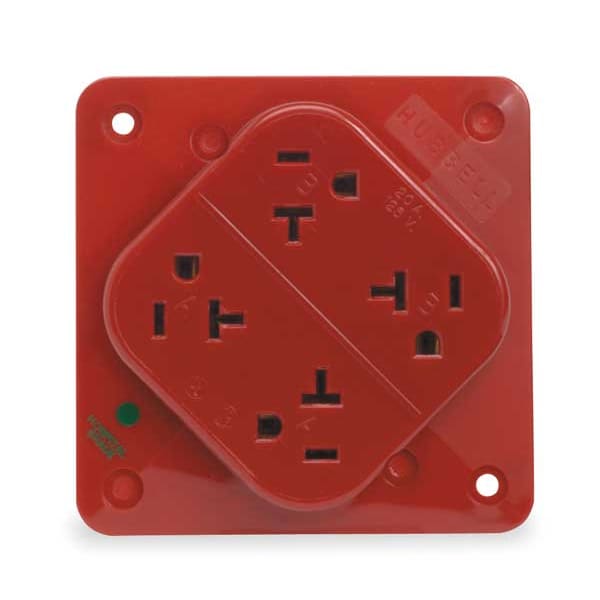

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL420HR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL420HR

  • Zoro # G3271292

product price: $41.51
/ea

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL420HR
Zoro #
G3271292
UPC #
783585015781
Country of Origin
United States

Dimensions

Width
4.3 in
Height
0.92 in
Face Plate Width
4.3 in
Mount Hole Center-to-Center Width
3.4 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.4 in
Overall Depth
0.9 in
Face Plate Height
4.3 in
Length
4.3 in
Wire Size
#12 AWG
Display Size
Standard Sized Product
Dimensions
4.3 in x 4.3 in x 0.92 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Red
Mount Type
Surface
Standards
CSA Certified C22.2 No. 42 File 285, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
No
Surge Suppression
No
Sub-Category
Four Outlet Receptacles
Corrosion Resistant
No
Number of Gangs
2
HP
1 hp
Outlet Type - Plugs and Receptacles
Quad
Voltage
125VAC
Application Environment
Hospital Grade
Power Indicator
No
Mounting Type
Surface
Weather Resistant - Plugs and Receptacles
No
Material
polycarbonate
Wiring Method - Plugs and Receptacles
Back
Outlet Type
Quad
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Surface
Type
Hospital Grade
Connection Orientation
Straight
Includes
4-PLEX Adapter Plate
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
Polarized
Yes
Housing Material
Polycarbonate
NEMA Enclosure Rating
1
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Grade
Hospital Grade Fed. Spec.
For Location
Indoor
AFCI
No
GFCI
No
Contact Material
Brass
Number of Outlets
4
Cover Type
No Cover
Shrouded
No
UL 94 Flammability Rating
V-2
Poles and Wires
2 Pole, 3 Wire
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Capable of withstanding a fault level of 1000A, per UL498
Flammability
UL 94V-2
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#12 AWG copper stranded or solid conductor only
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
Red
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Hospital Grade
Wattage
2500 W
Dielectric Strength
Withstands 2,000V minimum
Nema Rating
5-20R
Style
Smooth Face
Application
4-Plex Hospital Grade
Horsepower - Maximum
1
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498 Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

The HUBBELL 5-20R Quad Receptacle is a hospital grade, surface mount electrical outlet that provides four 20A, 125V AC outlets in a single unit. This receptacle features back wired screw terminals with screw terminals for installation and is constructed with polycarbonate housing. It includes an anchor hole and loop feature compatible with solid wire termination, triple wipe contacts, and break-off tabs permit split wiring of the outlets.


Key Features of the HUBBELL 5-20R Quad Receptacle:

  • Amperage/Voltage: Rated for 20A at 125V AC

  • NEMA Configuration: 5-20R quad outlet (four receptacles)

  • Mounting Type: Surface mount with included adapter plate

  • Wiring Method: Back wired screw terminals; accommodates #12 AWG copper stranded or solid conductor only

  • Contact Material: Brass contacts with triple wipe design

  • Grounding: Grounded device suitable for hospital grade applications

  • Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage; UL94 V-2 flammability rating

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Standards Compliance: Certified to CSA C22.2 No.42 File 285, NEMA WD-6 compliant, UL Listed to UL498 File E2186
