  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

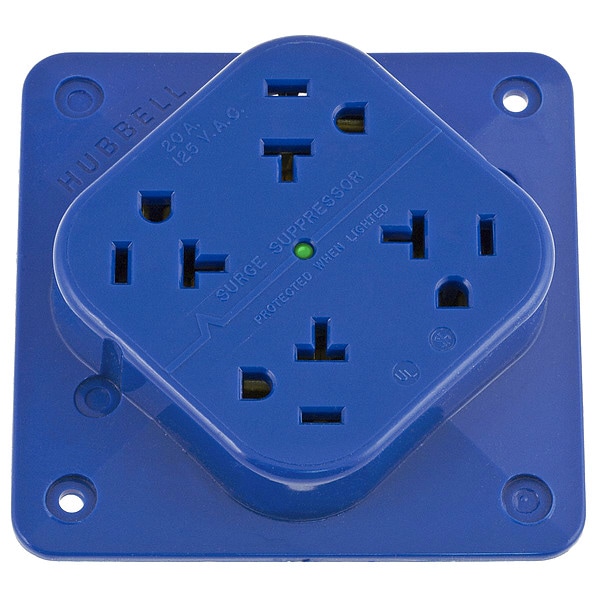

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL420S - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL420S

  • Zoro # G1365366

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL420S
Zoro #
G1365366
UPC #
783585017877
Country of Origin
United States

Dimensions

Width
0.92 in
Height
4.30 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.4 in
Mount Hole Center-to-Center Width
3.4 in
Face Plate Height
4.3 in
Overall Depth
4.3 in
Face Plate Width
4.3 in
Length
4.30 in
Display Size
Standard
Wire Size
#12 AWG
Dimensions
4.30 in x 0.92 in x 4.30 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Blue
Mount Type
Surface
Standards
CSA Certified C22.2 No. 42 File 285, NEMA WD-6, UL 498 File E2186
Resistance Properties
Surge Suppression
Flange Type
Non-Flanged
HP
1 hp
Voltage
125VAC
Mounting Type
Surface
Application Environment
Commercial
Corrosion Resistant
No
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Power Indicator
No
Outlet Type - Plugs and Receptacles
Quad
Wiring Method - Plugs and Receptacles
Back
Outlet Type
Quad
Sub-Category
Four Outlet Receptacles
Number of Gangs
2
Mounting Type - Plugs and Receptacles
Surface
Tamper Resistant
No
Material
polycarbonate
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Surge Suppression
Yes
Cover Type
No Cover
Market
Commercial
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Surge Protection
Yes
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Polarized
Yes
Horsepower Rating
1 hp
For Location
Indoor
AFCI
No
Number of Outlets
4
Contact Material
Brass
Housing Material
Polycarbonate
NEMA Enclosure Rating
1
Includes
4-PLEX Adapter Plate
Shrouded
No
GFCI
No
Grade
Federal Specification
Power Contacts Material
.032" (.81) Brass
Receptacle Style
Quad Surge Suppression Receptacle
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Other Available Colors
Ivory
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Standard
NEMA
Dielectric Voltage
Withstands 2,000V minimum
Top Material
Polycarbonate
Certification
UL Listed File E2186 Listed to UL Standard 498 Receptacles, 1449 Transient Voltage Surge Supressors. CSA Certified to Specification C22.2 No. 42M
Poles and Wires
2 Pole, 3-Wire Grounding
Current Interrupting
Capable of withstanding a fault level of 1000A, per UL498
Base Material
Polycarbonate
Rating
20A 125V
Horsepower
1
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Flammability
UL 94 V-2
Device Color
Blue
Receptacle Grade
Heavy Duty Spec Grade
Terminal Accommodation
#12 AWG stranded or solid copper conductor only
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Terminal Screw Material
#8-32 Brass, Multiple Drive
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Mounting Screws
Frequency Rating
60 Hz
Indicator(s) Type
LED Only
Horsepower - Maximum
1
Outlet
Straight Blade
Series
4-Outlet Receptacle
Style
Surge Suppression
Dielectric Strength
Withstands 2,000V minimum
Application
4-Plex with LED
Response Time
5
Performance
Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498 Dielectric Voltage: Withstands 2,000V minimum Mechanical: Product Identification: Ratings are a permanent part of the device Terminal Accommodation: #12 AWG stranded or solid copper conductor only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental: Flammability: UL 94 V-2 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
5-20R
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Listed to UL Standard 498 File E2186 NEMA® WD-6 Compliant

Description

Hubbell offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all-glass, conformally coated PC board provides superior moisture immunity for longer life in humid environments.
• Surge supression with lights, 80 joules/6500A per mode
• Anchor hole and loop feature secures solid wire for fast, easy terminations
• Triple wipe contacts
• Easily accessible break-off tabs for split wiring
• Three conductors energize all four outlets
