  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

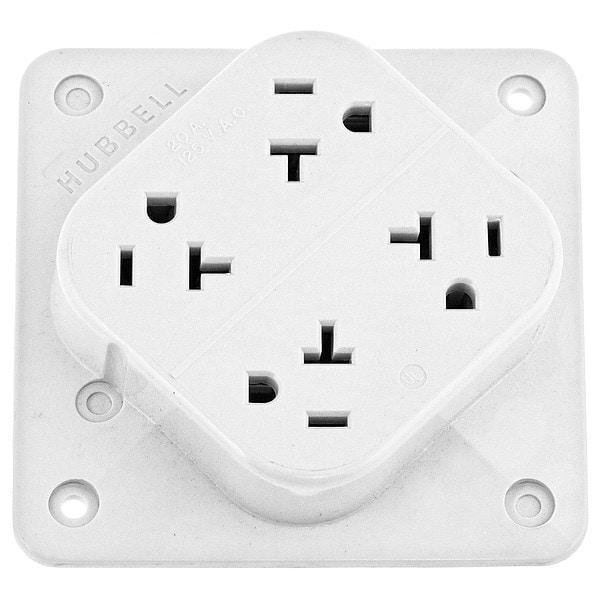

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL420W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL420W

  • Zoro # G0633464

product price: $37.45
/ea

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL420W
Zoro #
G0633464
UPC #
783585014548
Country of Origin
United States

Dimensions

Width
0.92 in
Height
4.30 in
Mount Hole Center-to-Center Width
3.4 in
Mount Hole Center-to-Center Height
3.4 in
Maximum Wire Size
12 AWG
Face Plate Width
4.3 in
Face Plate Height
4.3 in
Overall Depth
4.3 in
Dimensions
4.30 in x 0.92 in x 4.30 in
Wire Size
#12 AWG
Display Size
Standard Sized Product
Length
4.30 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Surface
Standards
CSA Certified C22.2 No. 42 File 285, NEMA WD-6, UL 498 File E2186
Flange Type
Non-Flanged
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back
Sub-Category
Four Outlet Receptacles
Mounting Type - Plugs and Receptacles
Surface
Number of Gangs
2
Surge Suppression
No
Power Indicator
No
Material
polycarbonate
Corrosion Resistant
No
Application Environment
Commercial
Outlet Type
Quad
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Quad
Weather Resistant
No
Mounting Type
Surface
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Voltage
125VAC
Grade
Federal Specification
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Cover Type
No Cover
AFCI
No
GFCI
No
Horsepower Rating
1 hp
Surge Protection
No
Housing Material
Polycarbonate
Number of Outlets
4
Polarized
Yes
Contact Material
Brass
Market
Commercial, Industrial
Maximum Operating Temperature
167 Degrees F
Shrouded
No
Includes
4-PLEX Adapter Plate
Certification
Listed to UL Standard 498 File E2186 Certified to CSA 22.2, No. 42 File 285
Top Material
Polycarbonate
Current Interrupting
Capable of withstanding a fault level of 1000A, per UL498
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Terminal Accommodation
#12 AWG stranded or solid copper conductor only
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Style
Quad
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Standard
NEMA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Receptacle Grade
Heavy Duty Spec Grade
Poles and Wires
2 Pole, 3-Wire Grounding
Power Contacts Material
.032" (.81) Brass
Terminal Screw Material
#8-32 Brass, Multiple Drive
Horsepower
1
Base Material
Polycarbonate
Rating
15A, 125V
Flammability
UL 94 V-2
Other Available Colors
Brown, Black, Gray, Ivory, White
Device Color
White
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498 Dielectric Voltage: Withstands 2,000V minimum Mechanical: Product Identification: Ratings are a permanent part of the device Terminal Accommodation: #12 AWG stranded or solid copper conductor only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental: Flammability: UL 94 V-2 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
Wattage
2500 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Industrial
Style
Smooth Face
Horsepower - Maximum
1
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Nema Rating
5-20R
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Listed to UL Standard 498 File E2186 NEMA® WD-6 Compliant
Series
4-Outlet Receptacle

Description

The HUBBELL 4-PLEX Quad Receptacle is a surface mount, Spec grade electrical outlet intended for commercial and industrial applications. It features four NEMA 5-20R outlets rated for 20A and 125V AC, with grounding capability. The receptacle includes anchor hole and loop features to secure solid wire connections, triple wipe brass contacts for reliable connectivity, and accessible break-off tabs that allow split wiring configurations.


Key Features of the HUBBELL 4-PLEX Quad Receptacle:

  • Outlet Configuration: Four NEMA 5-20R quad outlets accommodate connection of up to four devices.

  • Amperage/Voltage Rating: Rated for 20A at 125V AC; suitable for high-demand circuits.

  • Mounting Type: Surface mount design allows installation on flat surfaces in indoor dry locations.

  • Wiring Method: Back-wired screw terminals accommodate #12 AWG stranded or solid copper conductors.

  • Contact Material: Brass power contacts are used for the electrical connections.

  • Grounding: Grounded with #8-32 brass ground screw (green) included; supports safe operation per UL498 standards.

  • Casing Material: Polycarbonate housing meets UL94 V-2 flammability rating; withstands temperatures from -40°C to +75°C (without impact).

  • Certifications & Standards: Listed to UL Standard 498 File E2186, CSA Certified C22.2 No.42 File 285, NEMA WD-6 compliant.
