  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

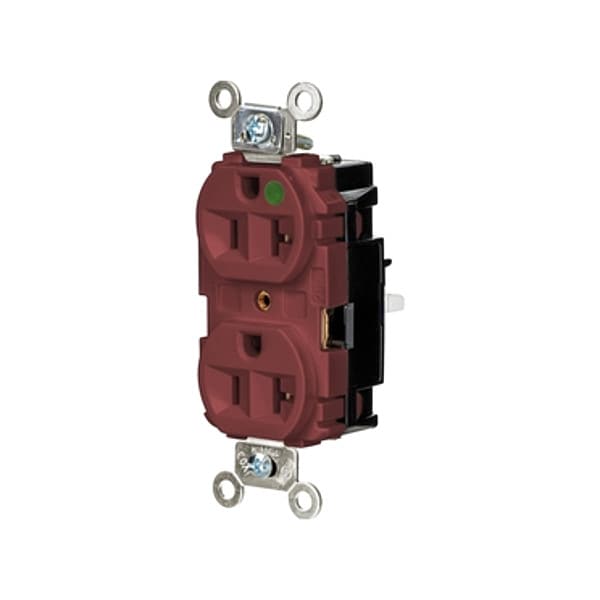

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL8300STR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL8300STR

  • Zoro # G310105560

product price: $33.95
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8300STR
Zoro #
G310105560
UPC #
783585687445
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Red
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Includes
Mounting Hardware
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Market
Commercial
Includes Mounting Hardware
Yes
Grade
Hospital Grade
For Location
Indoor
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Number of Outlets
2
Hub Type
Feed Through
Polarized
Yes
GFCI
No
NEMA Enclosure Rating
1
AFCI
No
Cover Type
No Cover
Shrouded
No
Surge Protection
No

Description

The HUBBELL Duplex Straight Blade Receptacle is a hospital grade, grounded electrical outlet rated for indoor use in dry locations. It features the EdgeConnectTM screwless termination system that enables wire installation by inserting the wire and pressing down the plunger.


Key Features of the HUBBELL Duplex Straight Blade Receptacle:

  • Current Rating: Rated for 20 A at 125V AC

  • NEMA Configuration: 5-20R duplex type with polarized design

  • Wire Connection Type: Push-in, back-wired screwless termination suitable for 10–14 AWG wires

  • Contact Material: Copper alloy contacts with triple and double wipe design

  • Resistance Properties: Thermoplastic housing

  • Grade & Standards: Hospital grade; meets CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA WD-6, UL 498 File No E2186 standards

  • Mounting & Hardware: Surface mount type; includes mounting hardware; feed-through hub type

  • Circuit Features: Easy access split circuit tab; spring termination eliminates strand relaxation

  • NEMA Enclosure Rating/IP Rating: NEMA Type 1 enclosure; IP20 rated for indoor use only
