  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Single, Green

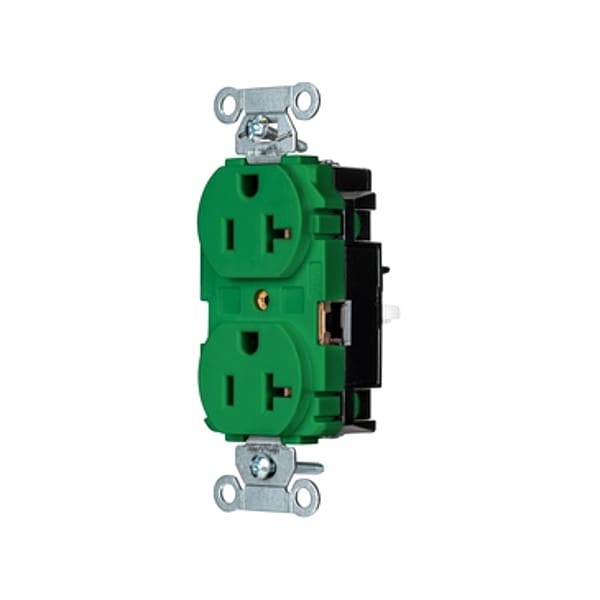

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Single, Green BR20STGN - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Single, Green

  • Mfr # BR20STGN

  • Zoro # G910105434

product price: $6.19
/ea
Sold in multiples of 10 for $61.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20STGN
Zoro #
G910105434
UPC #
783585727905
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Overall Depth
1.4 in
Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Green
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Includes
Mounting Hardware
Connection Orientation
Straight
Visual Indicator Lights
Power Connected
Housing Material
Thermoplastic
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Grade
General Use
For Location
Indoor
For Environment
Dry
Market
Commercial
Number of Outlets
2
Contact Material
Copper Alloy
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-2
Shrouded
No
NEMA Enclosure Rating
1
Surge Protection
No
AFCI
No
GFCI
No
Hub Type
Feed Through
Polarized
Yes
Cover Type
No Cover

Description

The HUBBELL Duplex Straight Blade Receptacle is a 20 A, 125V AC device suitable for commercial indoor use. It features the EdgeConnectTM screwless termination system that enables wire installation without additional tools. This duplex receptacle supports back wiring with push-in connections and includes tamper-resistant properties.


Key Features of the HUBBELL Duplex Straight Blade Receptacle:

  • Current Rating: Rated for 20 amperes at 125 volts AC

  • Wire Connection Type: Push-in back wiring compatible with 10–14 AWG wire sizes

  • Termination System: Screwless spring termination that incorporates a spring termination system

  • Contact Material: Copper alloy contacts with triple and double wipe design

  • NEMA Configuration: NEMA 5-20R duplex outlet, polarized and grounded

  • Tamper Resistant: Includes tamper-resistant properties

  • Housing Material: Thermoplastic housing suitable for dry, indoor locations; color green

  • Mounting Type: Surface mount with included mounting hardware; single gang configuration

  • Circuit Tab Feature: Easy access split circuit tab allows flexible wiring options

  • Standards Compliance: CSA Certified (22.2 No 42 File 285), UL Listed (UL 498 File No E2186), NEMA WD-6 compliant; IP20 rated enclosure (NEMA type 1)
