Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Single, Red
- Mfr # BR20STR
- Zoro # G110105463
Key Features
Specifications
Product Information
- MFR #
- BR20STR
- Zoro #
- G110105463
- UPC #
- 783585727943
- Country of Origin
- China
Dimensions
- Minimum Wire Size
- 14 AWG
- Face Plate Width
- 1.6 in
- Overall Depth
- 1.4 in
- Mount Hole Center-to-Center Height
- 3.3 in
- Maximum Wire Size
- 10 AWG
- Face Plate Height
- 2.8 in
- Fits Chest Size
- Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Description

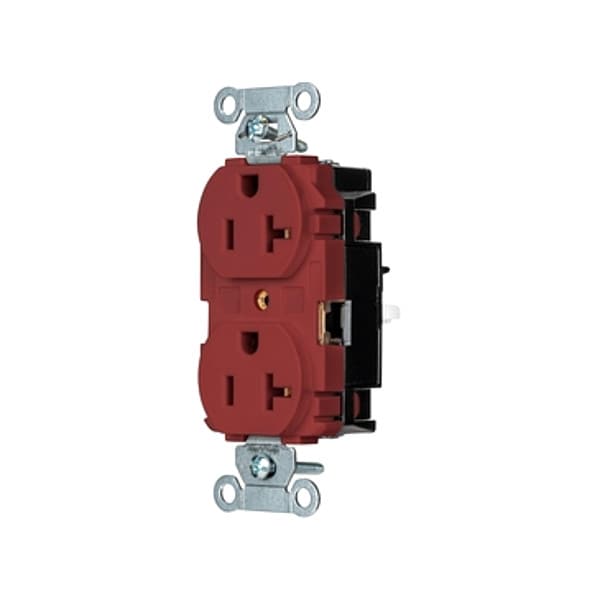

The HUBBELL Duplex Straight Blade Receptacle is a grounded electrical outlet rated for indoor use in dry locations. Featuring the EdgeConnectTM screwless termination system that enables wire installation without tools; wires are inserted and secured using a plunger mechanism, this receptacle allows for tool-free wire installation by simply inserting the wire and pressing down the plunger. It accommodates back-wired connections with push-in wiring suitable for 10 to 14 AWG conductors and includes mounting hardware for surface installation.
Key Features of the HUBBELL Duplex Straight Blade Receptacle:
- Current Rating: Rated for up to 20 A at 125V AC
- NEMA Configuration: 5-20R duplex type with two outlets
- Wire Connection Type: Push-in, back-wired screwless termination system
- Contact Material: Copper alloy contacts with triple and double wipe design
- Tamper Resistant: Incorporates features intended to reduce unwanted object insertion
- Grounding: Grounded configuration; polarized design supports proper alignment of connections
- Operating Temperature Range: -40°F to 167°F maximum operating temperature
- Housing Material/Color: Thermoplastic housing in red color; IP20 rated enclosure (NEMA Type 1)
- Mounting Method: Surface mount; includes mounting hardware; single gang configuration
- Circuit Tab Feature: Split circuit tab accommodates multiple wiring configurations
- Status Indicator: Visual indicator lights indicate power status
- Standards Compliance: CSA Certified (22.2 No 42 File 285), NEMA WD-6, UL Listed (UL498 File No E2186)
