  11. Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

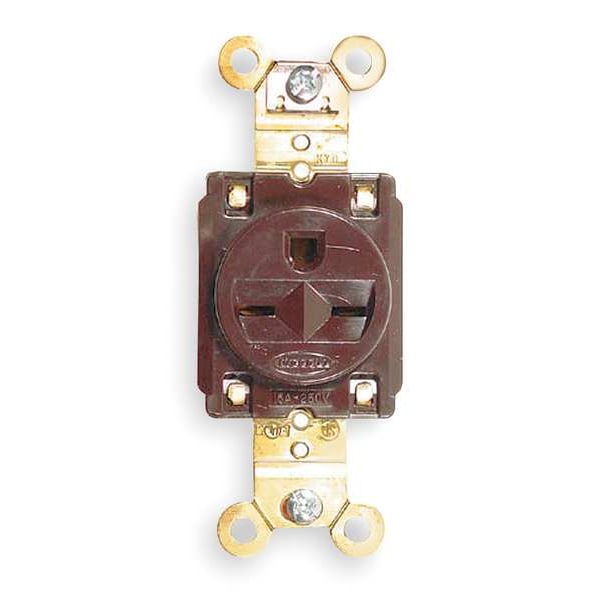

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5661 - main

Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5661

  • Zoro # G2590183

product price: $30.99
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5661
Zoro #
G2590183
UPC #
783585013992
Country of Origin
United States

Dimensions

Width
1.63 in
Height
1.19 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
1.9 in
Maximum Wire Size
10 AWG
Face Diameter
1.4 in
Minimum Wire Size
12 AWG
Face Plate Width
1.6 in
Dimensions
1.94 in x 1.63 in x 1.19 in
Length
1.94 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Corrosion Resistant
No
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
6-15R
Mounting Type
Flush
Outlet Type
Single
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Single
Material
Nylon/Reinforced PET
HP
2 hp
Mounting Type - Plugs and Receptacles
Flush
Voltage
250VAC
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Application Environment
Industrial
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Single Receptacles
Type
Single
Horsepower Rating
1 1/2 hp
UL 94 Flammability Rating
V-0, V-2
AFCI
No
Maximum Operating Temperature
167 Degrees F
GFCI
No
Connection Orientation
Straight
Cover Type
No Cover
Polarized
Yes
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Surge Protection
No
Housing Material
Nylon
Grade
Federal Specification
Includes
Grounding Clip, Mounting Hardware
NEMA Enclosure Rating
1
Includes Mounting Hardware
Yes
Contact Material
Brass
For Location
Indoor
Rating
15A, 250V
Current Interrupting
Certified for current interrupting at full rated current
Face Style
Finder Groove
Mounting Strap Material
.050" (1.3) Brass
Standard
NEMA
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Horsepower
1.5
Mounting Screw Material
Steel-Zinc Plated
Power Contacts Material
.037" (.9) Phosphor Bronze
Face Shape
Traditional
Poles and Wires
2 Pole, 3-Wire Grounding
Flammability
Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA., Top: UL 94V-2, Base: UL 94V-0
Auto Ground Clip Material
Stainless Steel
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Receptacle Style
Single
Device Color
Brown
Base Material
Reinforced PET
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Receptacle Grade
Heavy Duty Spec Grade
Other Available Colors
Brown, Ivory
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Top Material
Nylon
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Wattage
3750 W
Material - Mounting Hardware
Screw Mounting
Application
Extra Heavy Duty
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Extra Heavy Duty
Nema Rating
6-15R
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Guide RTRT Fed Spec WC596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
1.5
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Finder Groove Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 6-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Impact Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
