  6. Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

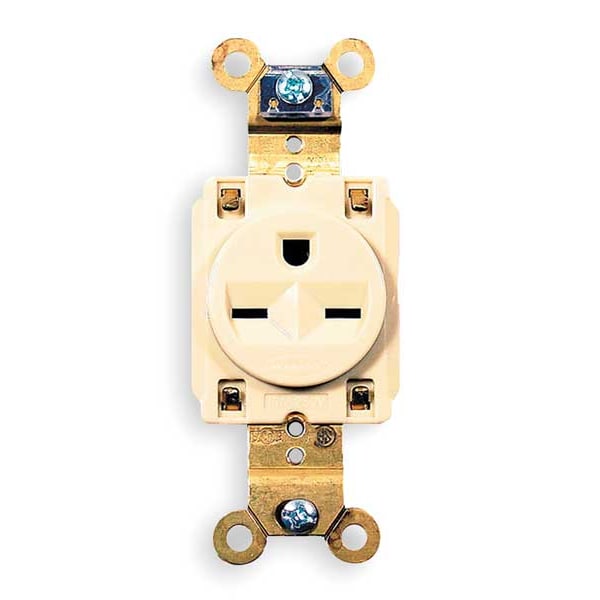

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5661I - main

Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5661I

  • Zoro # G2744752

product price:  $29.55
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5661I
Zoro #
G2744752
UPC #
783585014005
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.63 in
Face Plate Height
1.9 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Face Plate Width
1.7 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Face Diameter
1.4 in
Length
1.94 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
1.94 in x 1.63 in x 1.19 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
6-15R
Voltage
250VAC
Corrosion Resistant
No
Application Environment
Industrial
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Tamper Resistant
No
Mounting Type
Flush
Number of Gangs
1
Surge Suppression
No
Material
Nylon
Outlet Type
Single
Mounting Type - Plugs and Receptacles
Flush
HP
2 hp
Sub-Category
Single Receptacles
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Outlet Type - Plugs and Receptacles
Single
Type
Single
NEMA Enclosure Rating
1
Connection Orientation
Straight
Market
Industrial
Contact Material
Brass
Polarized
Yes
GFCI
No
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 1/2 hp
AFCI
No
Housing Material
Nylon
Shrouded
No
Grade
Federal Specification
For Location
Indoor
UL 94 Flammability Rating
V-0, V-2
Cover Type
No Cover
Includes
Grounding Clip, Mounting Hardware
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Base Material
Reinforced PET
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Dielectric Voltage
Withstands 2,000V minimum.
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Current Interrupting
Certified for current interrupting at full rated current.
Other Available Colors
Brown, Ivory
Power Contacts Material
.037" (.9) Phosphor Bronze
Face Style
Finder Groove
Poles and Wires
2 Pole, 3-Wire Grounding
Mounting Strap Material
.050" (1.3) Brass
Operating Temperatures
Maximum continuous 75°C, minimum -40°C (w/o impact).
Standard
NEMA
Face Shape
Traditional
Mounting Screw Material
Steel-Zinc Plated
Horsepower
1.5
Receptacle Grade
Heavy Duty Spec Grade
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only.
Top Material
Nylon
Rating
15A, 250V
Receptacle Style
Single
Auto Ground Clip Material
Stainless Steel
Terminal Identification
Terminals identified in accordance with UL498 (Brass, White, Green).
Flammability
Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Dielectric Strength
Withstands 2,000V minimum
Application
Extra Heavy Duty
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
6-15R
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Wattage
3750 W
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
1.5
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Guide RTRT Fed Spec WC596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 6-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 250V AC
