  6. Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

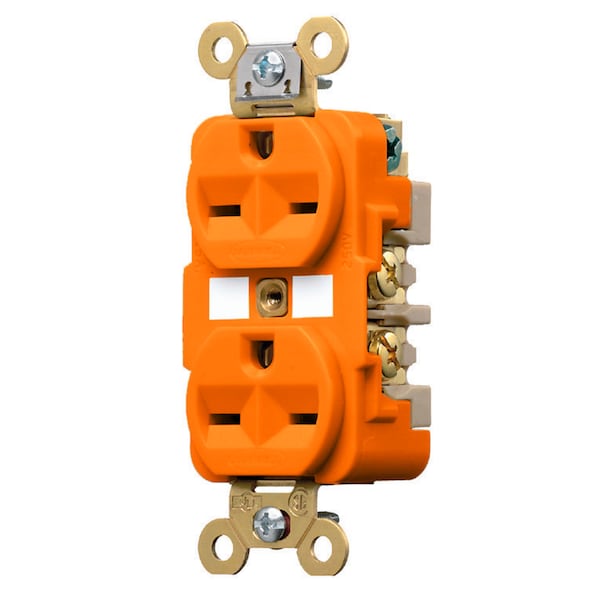

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground IG5662 - main

Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG5662

  • Zoro # G900622620

product price:  $38.07
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG5662
Zoro #
G900622620
UPC #
783585778556
Country of Origin
United States

Dimensions

Width
1.33 in
Height
1.05 in
Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.33 in x 1.05 in
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596G
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Voltage
250V
Application
Extra Heavy Duty
Material
Nylon
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Receptacle Style
Duplex
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Base Material
Reinforced PET
Power Contacts Material
.037" (.9) Brass - Ni Plated
Poles and Wires
2 Pole, 3-Wire Grounding
Rating
15A, 250V
Face Shape
Traditional
Current Interrupting
Certified for current interrupting at full rated current
Horsepower
1.5
Mounting Screw Material
Steel-Zinc Plated
Standard
NEMA
Enhancement
Isolated Ground
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Flammability
Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA., UL 94 V-2 or better
Receptacle Grade
Heavy Duty Spec Grade
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Mounting Strap Material
.050" (1.3) Brass
Product Type
Flush-receptacles
Top Material
Nylon
Device Color
Orange
Dielectric Voltage
Withstands 2,000V minimum
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Auto Ground Clip Material
Stainless Steel
Face Style
Finder Groove
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number Of Wires
3-Wire
Series
Extra Heavy Duty
Dielectric Strength
Withstands 2,000V minimum
Style
Finder Groove Face
Material - Mounting Hardware
Screw Mounting
Wattage
3750 W
Nema Rating
6-15R
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Guide RTRT Fed Spec WC596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Horsepower - Maximum
1.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact°C
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 250V,6-15R, Orange, Single Pack
