  11. Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

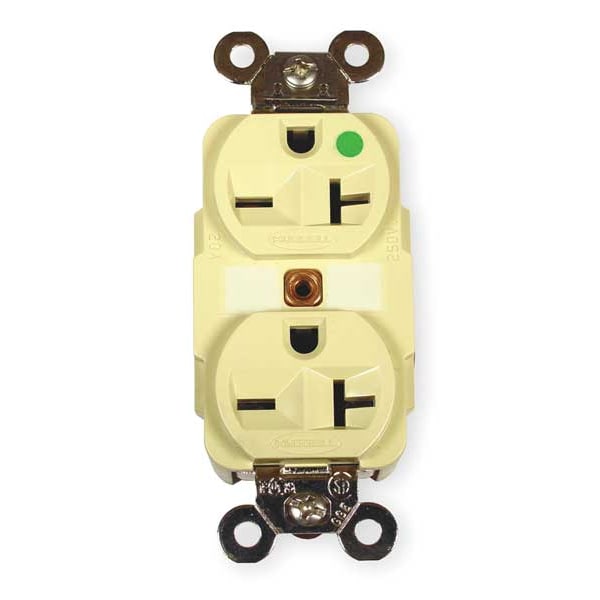

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8400I - main

Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8400I

  • Zoro # G2422183

product price: $41.58
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8400I
Zoro #
G2422183
UPC #
783585435824
Country of Origin
United States

Dimensions

Dimensions
3.28 in x 1.65 in x 1.19 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1.2 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.7 in
Height
1.19 in
Width
1.65 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Power Indicator
No
Mounting Type - Plugs and Receptacles
Flush
Material
Thermoplastic
Voltage
250VAC
Weather Resistant
No
Color
Ivory
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Configuration
6-20
NEMA Receptacle Configuration - Plugs and Receptacles
6-20R
Application Environment
Heavy Use Hospital Grade
Mounting Type
Flush
HP
2 hp
Number of Gangs
1
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Corrosion Resistant
No
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Duplex
Surge Suppression
No
Number Of Wires
3-Wire
Maximum Horsepower
2
Style
Finder Groove Face
Connectivity
Back and Side Wired Screw Terminals
Dielectric Strength
Withstands 2,000V minimum
Amperage
20 A
Brand
Hubbell Wiring Device-Kellems
Carton Quantity
10
Nema Rating
6-20R
Series
Hospital Grade
Type
Receptacle
Polarized
Yes
AFCI
No
Maximum Operating Temperature
167 Degrees F
GFCI
No
Cover Type
No Cover
NEMA Enclosure Rating
1
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Shrouded
No
UL 94 Flammability Rating
V-0
Horsepower Rating
2 hp
Housing Material
Thermoplastic
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade Fed. Spec.
Surge Protection
No
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V-0
Poles and Wires
2 Pole, 3 Wire
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Grade
Heavy Duty Spec Grade
Device Color
Ivory
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
2
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
5000 W
Application
Extra Heavy Duty Hospital Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186, Voltage Rating 250V AC
