  11. Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

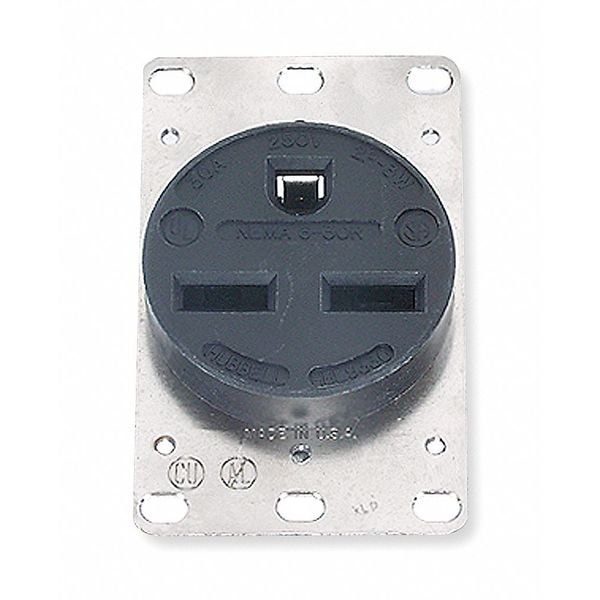

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL9330 - main

Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL9330

  • Zoro # G2548034

product price: $42.29
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-30R
Current Rating
30 A
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL9330
Zoro #
G2548034
UPC #
783585015231
Country of Origin
United States

Dimensions

Height
2.23 in
Width
2.25 in
Maximum Wire Size
4 AWG
Overall Depth
2.2 in
Face Diameter
2.1 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Width
1.8 in
Wire Size
#12 AWG to #4 AWG
Length
3.28 in
Display Size
Standard Sized Product
Dimensions
3.28 in x 2.25 in x 2.23 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA, Fed Spec, UL
Resistance Properties
WR Rating
Flange Type
Non-Flanged
Boot Code
C
Wiring Method
Back, Side
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Voltage
250VAC
Power Indicator
No
Weather Resistant
No
Outlet Type
Single
NEMA Receptacle Configuration - Plugs and Receptacles
6-30R
Wiring Method - Plugs and Receptacles
Back and Side
Material
Thermoplastic Polyester
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Single
Corrosion Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Single Receptacles
Mounting Type
Flush
HP
2 hp
Application Environment
Industrial
Number of Gangs
1
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-0
Cover Type
No Cover
For Location
Indoor
Polarized
Yes
Surge Protection
No
Includes Mounting Hardware
Yes
Housing Material
Composite, Thermoplastic
GFCI
No
NEMA Enclosure Rating
1
Market
Industrial
Contact Material
Brass
Shrouded
No
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
Includes
Mounting Hardware
Connection Orientation
Straight
Horsepower Rating
2 hp
Face Style
Finder Groove
Receptacle Style
Single
Box Terminals Material
Brass
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Top Material
Phenolic
Base Material
Phenolic
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
Black
Mounting Strap Material
.062" (1.5) Plated Steel
IP Suitability
IP20
Current Interrupting
Certified for current interrupting at full rated current
Power Contacts Material
Brass
Flammability
UL 94 V-0
Horsepower
2
Certification
UL, CSA, Fed Spec
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Poles and Wires
2 Pole, 3-Wire Grounding
Face Shape
Traditional
Ground Screw Material
Plated Steel
Standard
NEMA
Dielectric Voltage
Withstands 2,000V minimum
Terminal Screw Material
Plated Steel
Mounting Screw Material
Steel-Zinc Plated
Receptacle Grade
Heavy Duty Spec Grade
Rating
30A, 250V
Terminal Accommodation
#12 AWG through #4 AWG copper wire only
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Heavy Duty
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
2
Wattage
7500 W
OEM Brand Name
Hubbell Wiring Device-Kellems
Nema Rating
6-30R
Industry Standard(s)
CSA Certified NEMA® WD-6 Compliant UL Listed File E2186
Dielectric Strength
Withstands 2,000V minimum
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Composite, Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 6-30R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified, NEMA WD-6, UL E2186, Voltage Rating 250V AC, Wire Connection Type Screw Terminals
