  11. Strain Relief Cord Grip, 45, Liquid Tight

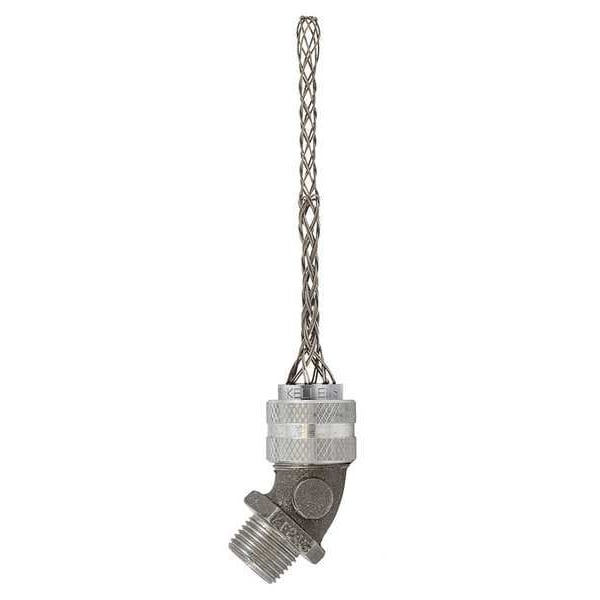

Hubbell Wiring Device-Kellems Strain Relief Cord Grip, 45, Liquid Tight 074011049 - main

Strain Relief Cord Grip, 45, Liquid Tight

  • Mfr # 074011049

  • Zoro # G5176552

product price: $94.99
/ea
Free Shipping & Returns

Key Features

Material
Aluminum
Thread Size
3/4 in
Box Connection
3/4 in MNPT
Insulated / Uninsulated
Uninsulated
Liquid Tight / Dust Tight
Liquid Tight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
074011049
Zoro #
G5176552
UPC #
783585322308
Country of Origin
United States

Dimensions

Thread Size
3/4 in
Length - External Strain Relief
4 3/8 in
Length - Box to End of Connector
2 5/16 in
Cord Dia. Range
0.50 in to 0.63 in
Trade Size
3/4"
Mesh Length
4-3/8"
Cable Dia. Range
0.50" to 0.63"
Form Size
F3
Compatible Conduit Trade Size
3/4 in
Hub Size
3/4 in MNPT
Cable Diameter Range
0.500 in-0.625 in
Cable Size
.500"-.625" (1.27-1.59)
Display Size
3/4" NPT

Details

Item
Threaded Connectors
Material
Aluminum
Box Connection
3/4 in MNPT
Insulated / Uninsulated
Uninsulated
Liquid Tight / Dust Tight
Liquid Tight
Material - External Strain Relief
Stainless Steel
Gland Color Code
No Code
Body Color - Cord Connector
Silver
Standards
CSA, UL
Number of Cords
1
Material - Cord Connector
Aluminum
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Strain Relief Type
Mesh
Male/Female
Male
Cord Grip Type
45 Degrees
Item - Cord Connector
Liquid Tight Cord Connector with Strain Relief
Style - Connector
45 Degrees
Insulated
No
Collar Material
Aluminum
Liquid Tight
Yes
Connection Orientation
45 Degrees
For Minimum Cable OD
0.5 in
Compatible Conduit Type
Liquid Tight Cord Connector with Strain Relief
Body Color
Silver
For Use With
Kellems Wire Management
Body Material
Aluminum
For Maximum Cable OD
0.625 in
Thread Type
NPT
Maximum Operating Temperature
240 Degrees F
Thread Gender
Male
Resistance Properties
Corrosion Resistant
Series
Deluxe Cord Grips
Environmental Rating
Hazardous Locations
Grommet Color Code
No Code
Minimum Operating Temperature
-30 Degrees F
Temperature Rating
Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
Conductor Range
0.5-0.625 in (1.27-1.59 mm)
Type
45 Degree Male Thread
Style
For Insulated Cables
Application
45 Degree Male- Form 3
Material - Mounting Hardware
Locknut or Tapped Opening
Item Type
Deluxe Cord Grips
Industry Standard(s)
UL Listed
Number Of Conductors
Single
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.

Description

Liquid Tight Cord Connector with Strain Relief, Cord Dia. Range 0.50 in to 0.63 in, Box Connection 3/4 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material Stainless Steel, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 45 Degrees , Strain Relief Type Mesh, External Strain Relief Length 4 3/8 in, Length - Box to End of Connector 2 5/16 in, Insulated No, Standards CSA, UL
