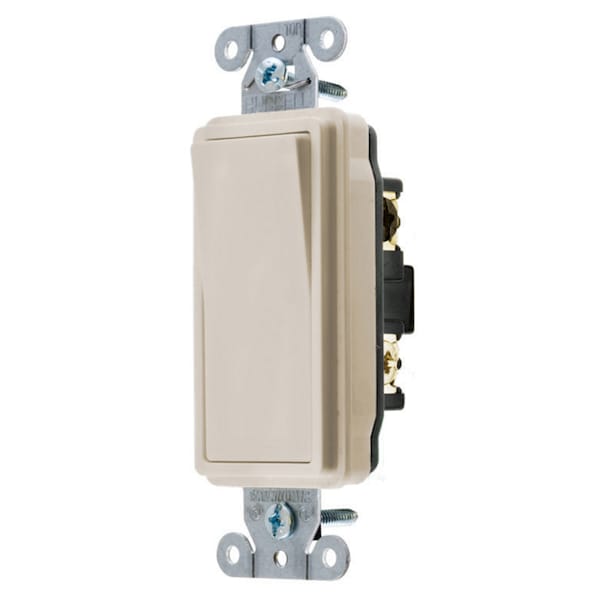

Hubbell Wiring Device-Kellems Style Line Decorator Series Specification Grade Switch DS320LA - main

Style Line Decorator Series Specification Grade Switch

  • Mfr # DS320LA

  • Zoro # G800701678

product price:  $37.85
/ea

Key Features

Switch Type
Three Way
Color
Light Almond
Series
General Purpose
Style
Three Way
Type
Rocker/Decorator
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DS320LA
Zoro #
G800701678
UPC #
783585151434
Country of Origin
China

Dimensions

Dimensions
3.91 in x 1.41 in x 1.01 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Three Way Style Line Decorator Switch
Switch Type
Three Way
Color
Light Almond
Series
General Purpose
Style
Three Way
Type
Rocker/Decorator
Voltage
120/277V AC
Connectivity
Back and Side Wired
Voltage Rating
120-277 VAC
Carton Quantity
10
Amperage
20 A
Current Rating
20 A
Number Of Poles
Single Pole
Temp. Rise
30°C maximum at rated current
Action
SPDT
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Max. Continuous Current
20A
Switch Grade
Decorator Series
Rocker Color
Light Almond
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Wiring Style
Back and Side Wired
Switch Handle Positions
2
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Listing and Certifications
UL Listed and CSA Certified
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Product Type
Toggle-switches
Max. Working Voltage
277V AC
Temperature Rise
30°C maximum at rated current

Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSwitch, Specification Grade, Three Way, 20A 120/277V AC, Back and SideWired, Light Almond
