This item is Discontinued.

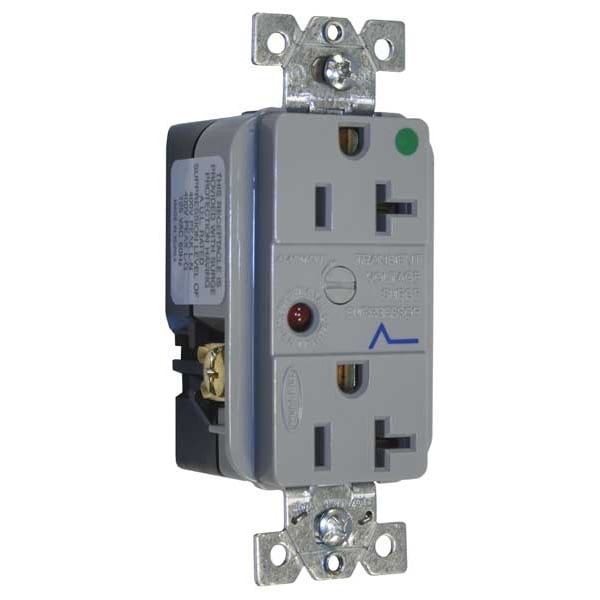

Hubbell Wiring Device-Kellems Surge Protection Receptacles, 5-20R, 20 A, 125 V, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8362GYSA

This item is Discontinued.

Hubbell Wiring Device-Kellems

Surge Protection Receptacles, 5-20R, 20 A, 125 V, 2 Pole, 3 Wire, Flush Mount, Grounded (Discontinued)

Mfr # HBL8362GYSA
Zoro # G6904003
UPC # 783585060453
Country of Origin China
Category Straight Blade Receptacles
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL8362GYSA
Zoro #
G6904003
UPC #
783585060453
Country of Origin
China

Dimensions

Display Size
Standard
Face Plate Height
2.6 in
Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in

Details

Item
Surge Protection Receptacles
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125 V
Phase
Single Phase
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, UL 498, UL E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Amps - Plugs and Receptacles
20 A
Sub-Category
Duplex Receptacles
Amps
20
Power Indicator
No
Wiring Method - Plugs and Receptacles
Side
Weather Resistant - Plugs and Receptacles
No
Material
Composite
Weather Resistant
No
Mounting Type
Flush
Surge Suppression
No
Number of Gangs
1
NEMA Configuration
5-20
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Decorator
Item - Plugs and Receptacles
Receptacle
Outlet Type - Plugs and Receptacles
Decorator Duplex
Voltage
125VAC
Corrosion Resistant
No
Application Environment
Hospital Grade
Color - Plugs and Receptacles
Gray
Voltage - Plugs and Receptacles
125V AC
Color
Gray
HP
1 hp
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Type
Duplex
Amperage
20 A
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-20R
Mounting Hardware Material
Mounting Screws
Indicator Type
LED and Audible Alarm
Connectivity
Terminal Screws
Application
Decorator Duplex with Light and Alarm
Brand
Hubbell Wiring Device-Kellems
Series
Hospital Grade
Carton Quantity
10
Outlet
Straight Blade
Response Time
5
Frequency
60 Hz
For Location
Indoor
Connection Orientation
Straight
Grade
Hospital Grade Fed. Spec.
AFCI
No
Shrouded
No
Includes
Grounding Clip
Cover Type
No Cover
GFCI
No
Housing Material
Composite
Minimum Operating Temperature
32 Degrees F
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Surge Protection
Yes
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Poles and Wires
2 Pole, 3 Wire
Device Grade
Heavy Duty Spec Grade
Industry Standard(s)
CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 Receptacles UL Listed File E2186
Amperage Rating
20 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Indicator(s) Type
LED and Audible Alarm
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Item Type
Surge Protection Receptacles
Current / Amperage Rating
20 A
Frequency Rating
60 Hz
Material - Mounting Hardware
Mounting Screws
Voltage Rating Description
125 V
Performance
Electrical - Frequency - 60Hz Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs) Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Composite, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2 No. 42, UL 498, UL E2186, Voltage Rating 125V AC
