  11. Switches and Lighting Control, Decorator Switch, Specification Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Black

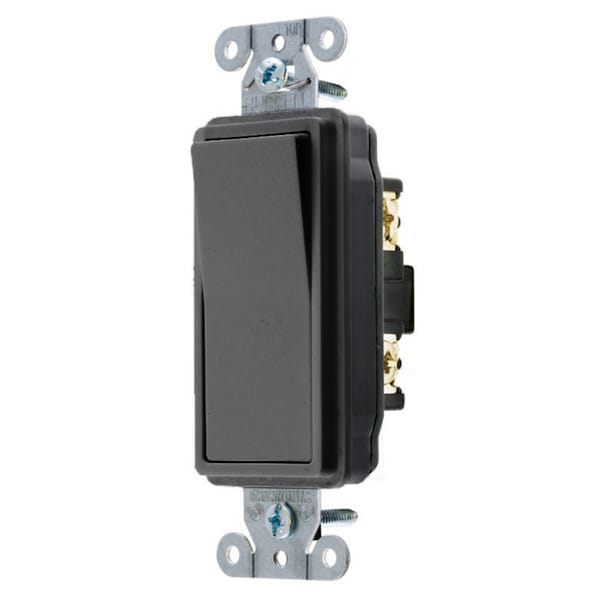

Hubbell Wiring Device-Kellems Switches and Lighting Control, Decorator Switch, Specification Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Black DS420BK - main

Switches and Lighting Control, Decorator Switch, Specification Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Black

  • Mfr # DS420BK

  • Zoro # G500701770

product price: $69.99
/ea

Key Features

Switch Type
Four Way
Color
Black
Width
1.73 in
Voltage
120/277V AC
Length
4.28 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS420BK
Zoro #
G500701770
UPC #
783585154497
Country of Origin
China

Dimensions

Width
1.73 in
Length
4.28 in
Height
1.67 in
Dimensions
4.28 in x 1.73 in x 1.67 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Four Way Style Line Decorator Switch
Switch Type
Four Way
Color
Black
Voltage
120/277V AC
Style
Four Way
Type
Rocker/Decorator
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current Rating
20 A
Voltage Rating
120-277 VAC
Temp. Rise
30°C maximum at rated current
Number Of Poles
Double Pole
Carton Quantity
10
Amperage
20 A
Connectivity
Back and Side Wired
Series
General Purpose
Action
DPDT
Material
Thermoplastic
Switch Handle Positions
2
Listing and Certifications
UL Listed and CSA Certified
Flammability
UL 94V-2
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Max. Continuous Current
20A
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Grade
Decorator Series
Wiring Style
Back and Side Wired
Max. Working Voltage
277V AC
Product Type
Toggle-switches
Overload
Minimum 4.8 times rated current for 100 cycles
Rocker Color
Black
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Industry Standard(s)
UL Listed
Item Type
Four Way Style Line Decorator Switch
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating
20 A
Temperature Rise - Max.
30°C maximum at rated current
Amperage Rating
20 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSwitch, Specification Grade, Four Way, 20A 120/277V AC, Back and SideWired, Black
