  11. Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Light Almond

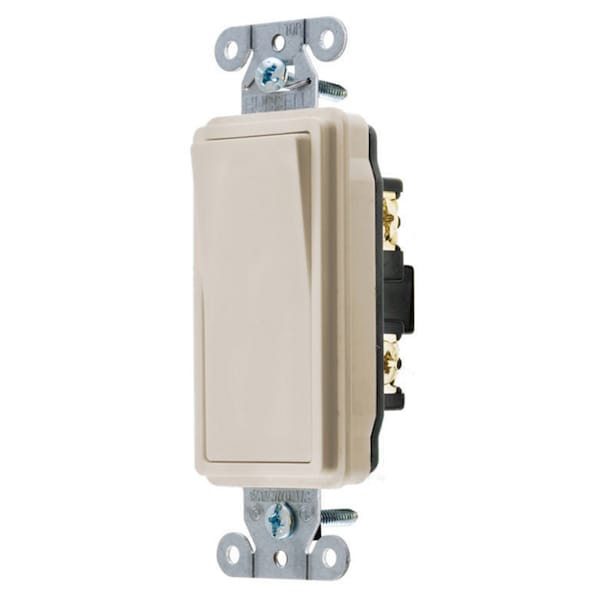

Hubbell Wiring Device-Kellems Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Light Almond DS115LA - main

Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Light Almond

  • Mfr # DS115LA

  • Zoro # G700701488

product price: $15.35
/ea

Key Features

Switch Type
Single Pole
Color
Light Almond
Width
1.43 in
Length
4.28 in
Voltage
120/277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS115LA
Zoro #
G700701488
UPC #
783585151267
Country of Origin
China

Dimensions

Width
1.43 in
Length
4.28 in
Height
1.54 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.28 in x 1.43 in x 1.54 in

Details

Item
Single Pole Style Line Decorator Switch
Switch Type
Single Pole
Color
Light Almond
Voltage
120/277V AC
Style
Single Pole
Type
Rocker/Decorator
Amperage
15 A
Connectivity
Back and Side Wired
Carton Quantity
10
Temp. Rise
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole
Voltage Rating
120-277 VAC
Series
General Purpose
Current Rating
15 A
Material
Thermoplastic
Overload
Minimum 4.8 times rated current for 100 cycles
Switch Grade
Decorator Series
Max. Continuous Current
15A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Switch Handle Positions
2
Listing and Certifications
UL Listed and CSA Certified
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Product Type
Toggle-switches
Wiring Style
Back and Side Wired
Temperature Rise
30°C maximum at rated current
Max. Working Voltage
277V AC
Rocker Color
Light Almond
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Single Pole Style Line Decorator Switch
Current / Amperage Rating
15 A
Amperage Rating
15 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSwitch, Specification Grade, Single Pole, 15A 120/277V AC, Back and SideWired, Light Almond
