  11. Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Office White
This item is Discontinued.

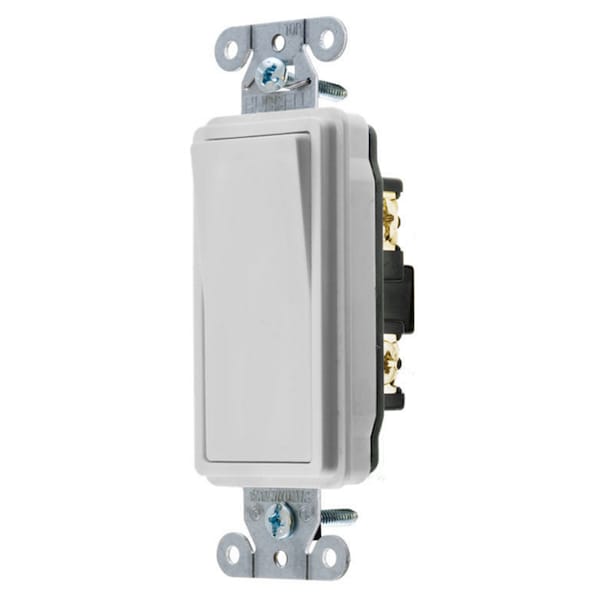

Hubbell Wiring Device-Kellems Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Office White DS115OW

Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Office White (Discontinued)

  • Mfr # DS115OW
  • Zoro # G200701407
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS115OW
Zoro #
G200701407
UPC #
783585151250
Country of Origin
China

Dimensions

Width
1.43 in
Height
1.54 in
Length
4.28 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.28 in x 1.43 in x 1.54 in

Details

Item
Single Pole Style Line Decorator Switch
Switch Type
Single Pole
Color
Office White
Voltage
120/277V AC
Type
Rocker/Decorator
Style
Single Pole
Material
Thermoplastic
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Item Type
Single Pole Style Line Decorator Switch
Max. Working Voltage
277V AC
Flammability
UL 94V-2
Connectivity
Back and Side Wired
Switch Handle Positions
2
Temp. Rise
30°C maximum at rated current
Overload
Minimum 4.8 times rated current for 100 cycles
Series
General Purpose
Amperage Rating
15 A
Temperature Rise - Max.
30°C maximum at rated current
Industry Standard(s)
UL Listed
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current / Amperage Rating
15 A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Continuous Current
15A
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Number Of Poles
Single Pole
Voltage Rating
120-277 VAC
Carton Quantity
10
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Product Type
Toggle-switches
Listing and Certifications
UL Listed and CSA Certified
Amperage
15 A
Switch Grade
Decorator Series
Temperature Rise
30°C maximum at rated current
Rocker Color
Office White
Wiring Style
Back and Side Wired
Current Rating
15 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSwitch, Specification Grade, Single Pole, 15A 120/277V AC, Back and SideWired, Office White
