  11. Switches and Lighting Control, Decorator Switch, Specification Grade, Three Way, 15A 120/277V AC, Back and Side Wired, Black

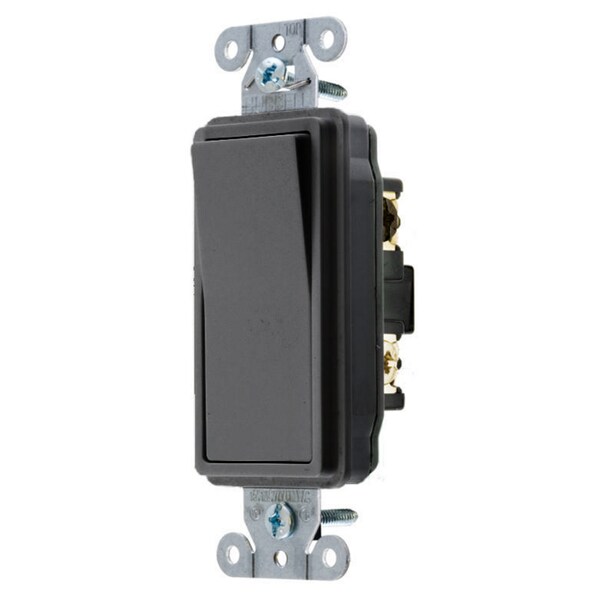

Hubbell Wiring Device-Kellems Switches and Lighting Control, Decorator Switch, Specification Grade, Three Way, 15A 120/277V AC, Back and Side Wired, Black DS315BK - main

Switches and Lighting Control, Decorator Switch, Specification Grade, Three Way, 15A 120/277V AC, Back and Side Wired, Black

  • Mfr # DS315BK

  • Zoro # G400701313

product price: $26.55
/ea

Key Features

Switch Type
Three Way
Color
Black
Width
1.41 in
Type
Rocker/Decorator
Length
3.91 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS315BK
Zoro #
G400701313
UPC #
783585154428
Country of Origin
China

Dimensions

Width
1.41 in
Length
3.91 in
Height
1.01 in
Wire Size
#14 AWG to #10 AWG
Dimensions
3.91 in x 1.41 in x 1.01 in

Details

Item
Three Way Style Line Decorator Switch
Switch Type
Three Way
Color
Black
Type
Rocker/Decorator
Style
Three Way
Voltage
120/277V AC
Material
Thermoplastic
Action
SPDT
Rocker Color
Black
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage Rating
120-277 VAC
Wiring Style
Back and Side Wired
Series
General Purpose
Connectivity
Back and Side Wired
Switch Grade
Decorator Series
Amperage Rating
15 A
Amperage
15 A
Carton Quantity
10
Switch Handle Positions
2
Max. Continuous Current
15A
Listing and Certifications
UL Listed and CSA Certified
Industry Standard(s)
UL Listed
Temp. Rise
30°C maximum at rated current
Flammability
UL 94V-2
Product Type
Toggle-switches
Temperature Rise
30°C maximum at rated current
Number Of Poles
Single Pole
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Overload
Minimum 4.8 times rated current for 100 cycles
Current Rating
15 A
Max. Working Voltage
277V AC
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Three Way Style Line Decorator Switch
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current / Amperage Rating
15 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSwitch, Specification Grade, Three Way, 15A 120/277V AC, Back and SideWired, Black
