  5. Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Single Pole Rockers, 15A 120V AC, Side Wired, Black

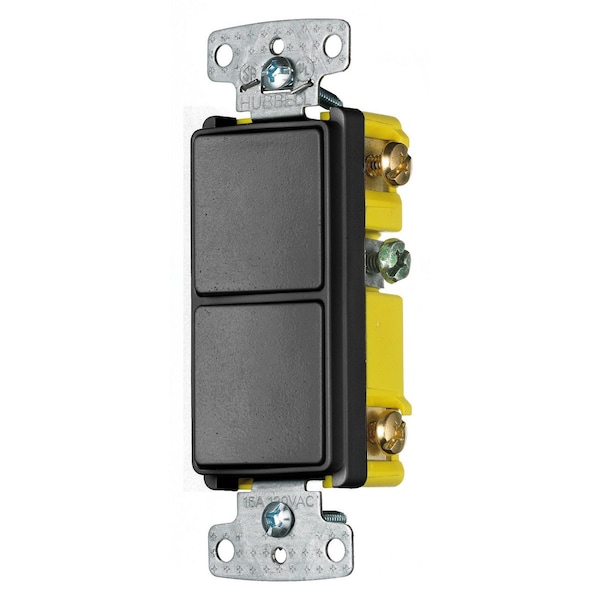

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Single Pole Rockers, 15A 120V AC, Side Wired, Black RCD101BK - main

Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Single Pole Rockers, 15A 120V AC, Side Wired, Black

  • Mfr # RCD101BK

  • Zoro # G500701244

product price:  $31.85
/ea

Key Features

Application
Residential
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Voltage Rating Description
120/277V AC kV
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Material - Mounting Hardware
Mounting Screws
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RCD101BK
Zoro #
G500701244
UPC #
883778110245
Country of Origin
China

Dimensions

Display Size
Standard Size

Details

Application
Residential
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Voltage Rating Description
120/277V AC kV
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Material - Mounting Hardware
Mounting Screws
Operating Cycles
30,000 Minimum
Contact Rating
15A
Current Rating
15 A
Wattage
4155
Amperage Rating
15 A
Current / Amperage Rating
15 A
Connectivity
Side Wired
Actuator
Rocker
Number Of Poles
2) Single Pole
Voltage Rating
120/277V AC kV
Contact Configuration
Two Position
Item Type
Decorator Switch Combo Devices
Action
Snap Switch
Performance
Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute Electrical - Endurance - 30,000 cycles minimum Electrical - Max. working voltage - 120V Electrical - Overload - 1.5 times rating Environmental - Flammability - UL V0 Environmental - Operating temperatures - Maximum continuous 60°C minimum -20°C (without impact) Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only push wire: #14 AWG solid copper wire only
Industry Standard(s)
CSA Certified UL Listed E3896

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Combination Devices, Residential Grade , Decorator Series, 2) SinglePole Rockers, 15A 120V AC, Side Wired, Black
