Shop HUBBELL WIRING DEVICE-KELLEMS

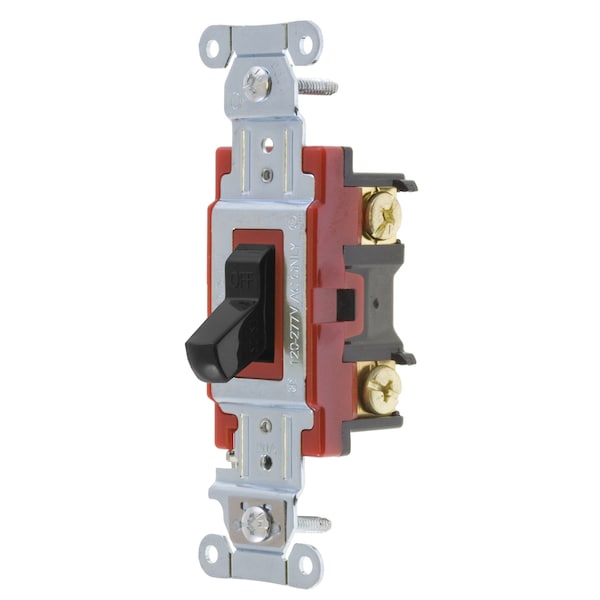

Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Black

  • Mfr # 1221BK

  • Zoro # G300701239

product price:
$
9.45
/ea

Key Features

Switch Type
Single Pole
Color
Black
Type
Toggle
Voltage
120/277V AC
Style
Single Pole
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1221BK
Zoro #
G300701239
UPC #
783585181363
Country of Origin
China

Dimensions

Width
1.49 in
Length
4.18 in
Height
1.83 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.18 in x 1.49 in x 1.83 in

Details

Switch Type
Single Pole
Color
Black
Type
Toggle
Voltage
120/277V AC
Style
Single Pole
Voltage Rating
120-277 VAC
Current Rating
20 A
Series
Heavy Duty
Application
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Carton Quantity
10
Connectivity
Back and Side Wired
Temp. Rise
30°C maximum at rated current
Amperage
20 A
Number Of Poles
Single Pole
Max. Working Voltage
277V AC
Switch Grade
Hubbell-Pro Series
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Flammability
UL 94V-2
Product Type
Toggle-switches
Temperature Rise
30°C maximum at rated current
Wiring Style
Back and Side Wired
Max. Continuous Current
20A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Switch Handle Positions
2
Toggle Color
Black
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C,Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Voltage Rating Description
120-277 VAC
Current / Amperage Rating
20 A
Amperage Rating
20 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, Hubbell-PRO Series, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Black
