  6. Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired

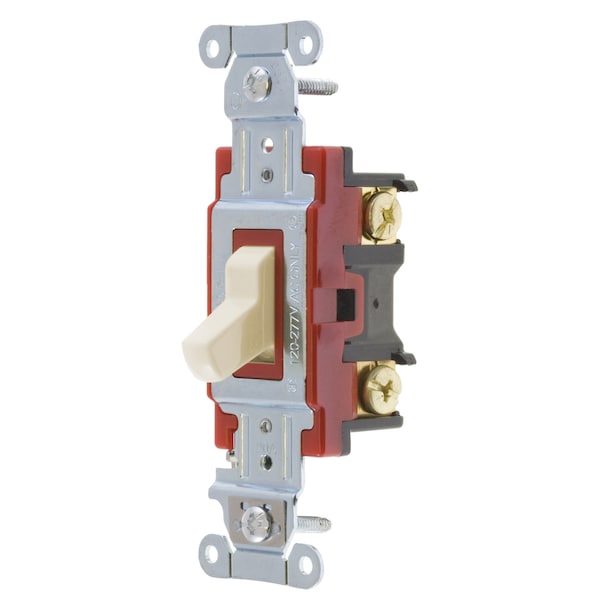

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired 1223LA - main

Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired

  • Mfr # 1223LA

  • Zoro # G800701739

product price:  $10.45
/ea

Key Features

Switch Type
Three Way
Color
Light Almond
Width
1.49 in
Style
Three Way
Voltage
120/277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1223LA
Zoro #
G800701739
UPC #
783585181479
Country of Origin
China

Dimensions

Width
1.49 in
Length
4.18 in
Height
1.83 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.18 in x 1.49 in x 1.83 in

Details

Switch Type
Three Way
Color
Light Almond
Style
Three Way
Voltage
120/277V AC
Type
Toggle
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage
20 A
Number Of Poles
Single Pole
Application
Back and Side Wired
Series
Heavy Duty
Voltage Rating
120-277 VAC
Connectivity
Back and Side Wired
Current Rating
20 A
Carton Quantity
10
Temp. Rise
30°C maximum at rated current
Action
SPDT
Flammability
UL 94V-2
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Wiring Style
Back and Side Wired
Switch Grade
Hubbell-Pro Series
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Temperature Rise
30°C maximum at rated current
Product Type
Toggle-switches
Max. Working Voltage
277V AC
Overload
Minimum 4.8 times rated current for 100 cycles
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Max. Continuous Current
20A
Switch Handle Positions
2
Toggle Color
Light Almond
Current / Amperage Rating
20 A
Amperage Rating
20 A
Industry Standard(s)
UL Listed
Voltage Rating Description
120-277 VAC
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C,Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, Hubbell-PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277VAC, Back and Side Wired, Light Almond
