  6. Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 347V AC, Terminal Screws, Ivory

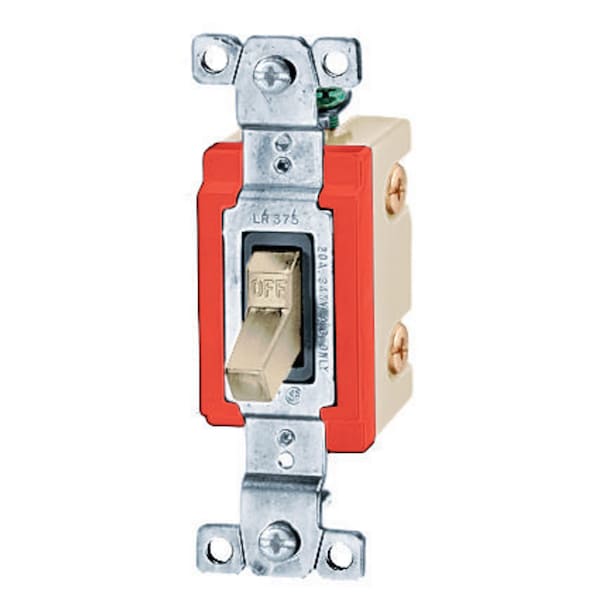

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 347V AC, Terminal Screws, Ivory HBL18223ICN - main

Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 347V AC, Terminal Screws, Ivory

  • Mfr # HBL18223ICN

  • Zoro # G200702183

product price:  $32.99
/ea

Key Features

Switch Type
Three Way
Color
Ivory
Height
1.86 in
Length
4.06 in
Type
Toggle
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL18223ICN
Zoro #
G200702183
UPC #
783585924786
Country of Origin
China

Dimensions

Height
1.86 in
Length
4.06 in
Width
1.3 in
Dimensions
4.06 in x 1.3 in x 1.86 in
Wire Size
#14 AWG to #10 AWG

Details

Switch Type
Three Way
Color
Ivory
Type
Toggle
Voltage
347V AC
Style
Three Way
Application
General Purpose
Product Type
Toggle-switches
Max. Continuous Current
20A
Overload
Minimum 4.8 times rated current for 100 cycles
Amperage
20 A
Switch Handle Positions
2
Action
SPDT
Amperage Rating
20 A
Listing and Certifications
CSA Certified
Temperature Rise
30°C maximum at rated current
Current / Amperage Rating
20 A
Industry Standard(s)
UL Listed
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temp. Rise
30°C maximum at rated current
Temperature Rise - Max.
30°C maximum at rated current
Toggle Color
Ivory
Max. Working Voltage
277V AC
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Carton Quantity
10
Voltage Rating Description
347 VAC
Voltage Rating
347 VAC
Series
Extra Heavy Duty
Current Rating
20 A
Connectivity
Back and Side Wired
Wiring Style
Back and Side Wired
Flammability
UL 94V-2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Switch Grade
Industrial
Number Of Poles
Single Pole

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A347V AC, Terminal Screws, Ivory
